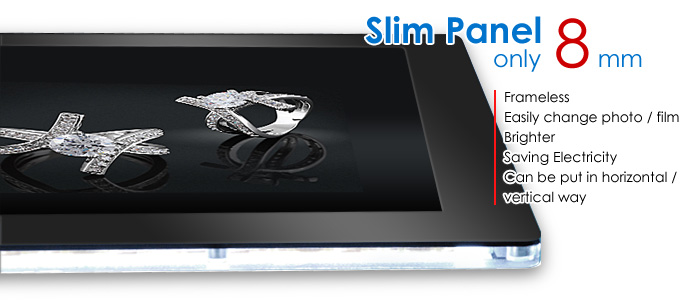

Slim Pad
This modern light panel for advertisement has a simple appearance. It is characterized with its elegant design and eye-catching effects. The panel is an
ideal advertisement product for personal or any business. Also, it features functions as being able to change pictures easily, having stable light source,
slim, quick installation and electricity smart.

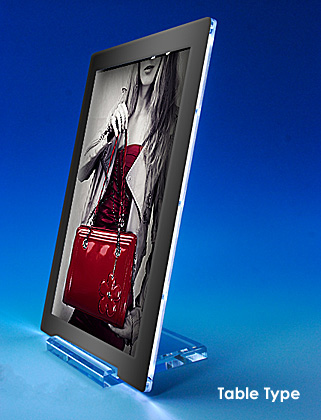

Table Type
| ITEM |
VLB-A3 |
VLB-B4 |
VLB-A4 |
VLB-A5 |
| View Side |
One Side |
One Side |
One Side |
One Side |
| Panel Size L*W*H (mm) |
470*347*8 |
403*300*8 |
347*260*8 |
260*198*8 |
| Film Size L*W (mm) |
430*307 |
363*260 |
307*220 |
220*158 |
| View Size L*W (mm) |
420*297 |
353*250 |
297*210 |
210*148 |
| Panel Material |
Plastic |
Plastic |
Plastic |
Plastic |
| Power Consumption |
6.5 W |
6 W |
4.5 W |
2.5 W |
| Power Specification |
100V~240V 60/50Hz |
100V~240V 60/50Hz |
100V~240V 60/50Hz |
100V~240V 60/50Hz |
| LED Size |
420*4*0.8(mm) *2 |
360*4*0.8(mm) *2 |
300*4*0.8(mm) *2 |
140*4*0.8(mm) *2 |
| Color Temperature |
6500 k |
6500 k |
6500 k |
6500 k |
| Brightness (LUX) |
1800-2500 (LUX) |
2000-2800 (LUX) |
2500-3500 (LUX) |
2500 (LUX) |
| Luminance Uniformity |
80% average totally |
80% average totally |
80% average totally |
80% average totally |
| Mounting Type |
Table |
Table |
Table |
Table |
| Avg. Life |
30000 hour |
30000 hour |
30000 hour |
30000 hour |
| Net Weight (Kg) |
2.5 kg |
2.0 kg |
1.3 kg |
0.5 kg |
| Gross Weight (Kg) |
2.8 kg |
2.3 kg |
1.5 kg |
0.7 kg |
| Environment |
For indoor |
For indoor |
For indoor |
For indoor |

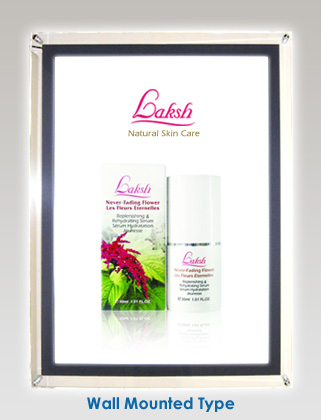

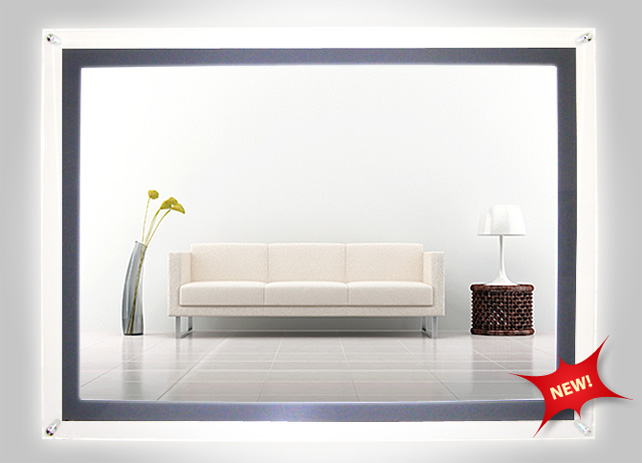

Wall Mounted Type
| ITEM |
VLB-A3W |
VLB-A2W |
VLB-A1W |
| View Side |
One Side |
One Side |
One Side |
| Panel Size L*W*H (mm) |
470*347*9 |
684*510*9 |
930*684*9 |
| Film Size L*W (mm) |
424*301 |
588*414 |
834*588 |
| View Size L*W (mm) |
420*297 |
584*410 |
830*584 |
| Panel Material |
Plastic |
Plastic |
Plastic |
| Power Consumption |
6.5 W |
17 w |
42 W |
| Power Specification |
100V~240V 60/50Hz |
100V~240V 60/50Hz |
100V~240V 60/50Hz |
| LED Size |
420*4*0.8(mm) *2 |
600*4*0.8(mm) *2 |
840*4*0.8(mm) *2 |
| Color Temperature |
6500 k |
6000 k |
6000 k |
| Brightness (LUX) |
1800-2500 (LUX) |
2000-2800 (LUX) |
2500-3500 (LUX) |
| Luminance Uniformity |
80% average totally |
80% average totally |
80% average totally |
| Mounting Type |
Wall |
Wall |
Wall |
| Avg. Life |
30000 hour |
30000 hour |
30000 hour |
| Net Weight (Kg) |
2.5 kg |
6.0 kg |
8.0 kg |
| Gross Weight (Kg) |
2.8 kg |
7.0 kg |
9.0 kg |
| Environment |
For indoor |
For indoor |
For indoor |
Comparison of light panels
| Type |
VIIRA LED light panel |
Other LED light panel |
CCFL light panel |
T5 Lamp panel |
| Weight |
Light |
Light |
Heavier |
Heavy |
| Frame |
frameless |
with frame |
with frame |
with frame |
| Thickness |
With 8 mm |
With 12 mm |
With 2-3 mm |
With 4-8 mm |
| Brightness |
Bright |
Acceptable |
Bright |
Bright |
| Uniformity |
Good |
Acceptable |
Acceptable |
Bad |
| Changing |
Convenient |
Convenient |
Convenient |
Inconvenient |
| Life expectancy |
About 30000hr |
About 30000hr |
About 80000hr |
About 8000hr |
| Electricity Consumption |
30% |
30% |
60% |
100% |
| Safety |
Low voltage, low current, safe Environmental LED |
Low voltage, low current, safe Environmental LED |
High voltage, micro current, safe Components of lamp are not environment friendly |
Common AC Components of lamp are not environment friendly |
| Electromagnetic Interference |
Good |
Good |
Acceptable |
Bad |
