Foldable Truss Display Systems

Accessories

STEEL BOTTOM PLATE Ref. No Description Weight
122601
  • 100mm x 100 mm, M12
  • Black powder coating
  • For fixing space frame structures to the floor.
0.604Kgs.
122602
  • M12, 100mm dia.,
  • Chrome-plated
  • For fixing space frame structures to the floor.
 0.499Kgs.
122603
  • M12, 50mm dia.,
  • Chrome-plated
  • Used as base or top plate or spacer to the wall.
  • Length of the threaded bolt 10mm.
0.156Kgs
PLASTIC FOOT PLATE Ref. No Description Weight
122604
  • M12, 100mm dia.,
  • White color plastic base,
  • Thread fixed.
  • Total height 32mm.
 0.041Kgs
PLASTIC ADJUSTABLE FOOT BASE Ref. No Description Weight
122605
  • M12, 50mm dia.,
  • Chrome-plated plastic
  • Used as base or top plate or spacer to the wall.
  • Length of the threaded bolt 45mm
 0.066Kgs
COLORLESS PLASTIC CLIP Ref. No Description Weight
122608
  • Attachment of panels of 4-6mm thickness, to 22mm tubes dia.
  • 122608 for 22mm tube
0.006Kgs
PIVOTAL CONNECTING PIECE Ref. No Description Weight
122612
  • M12 / M12
  • With pivotal connection is used for the connection of space frame work to substructures with M12 connection thread.
0.090Kgs.
ADJUSTABLE ANTI-VIBRATION FOOT Ref. No Description Weight
122613
  • 50mm, M12
  • Used as base or top plate or spacer to the wall.
  • Length of the threaded bolt is 75 mm
  • Rubber bottom
 0.180Kgs.
THREADED SLEEVE HEXAGONAL Ref. No Description Weight
122614
  • Use it at the wooden desk bottom -M12
  • Fix it in order to orient the desk foot at the bottom of the desk
 0.025kgs
THREADED SLEEVE HEXAGONAL Ref. No Description Weight
122615
  • 2 x M12 st
  • For connection or extension of frame girders in place of the node when lateral connection is not required.
 0.08kgs
  Ref. No Description Weight
122616
  • For 22 mm dia.
  • Material:Plastic
  • The same as component 122608, spring is added for the hanging of poster and picture.
 0.007kgs
  Ref. No Description Weight
122617
  • Φ22mm, M12
  • Material:Steel
  • Application fixing board.
 0.034kgs

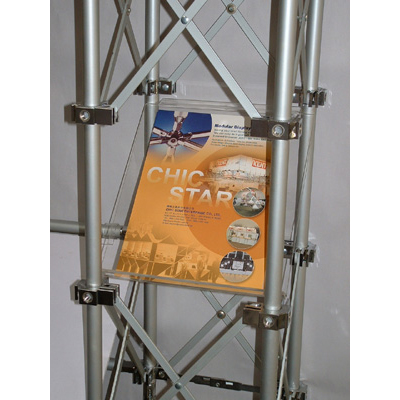

BROCHURE DISPLAY TABLE Ref. No Description Weight
122691
  • Any A4 size brochure can be displayed in this acrylics table that easily fits into trusses.
 0.425kgs

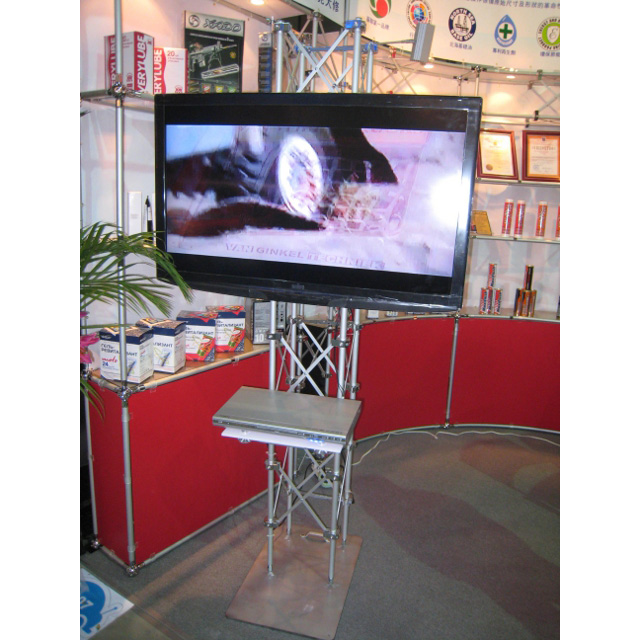

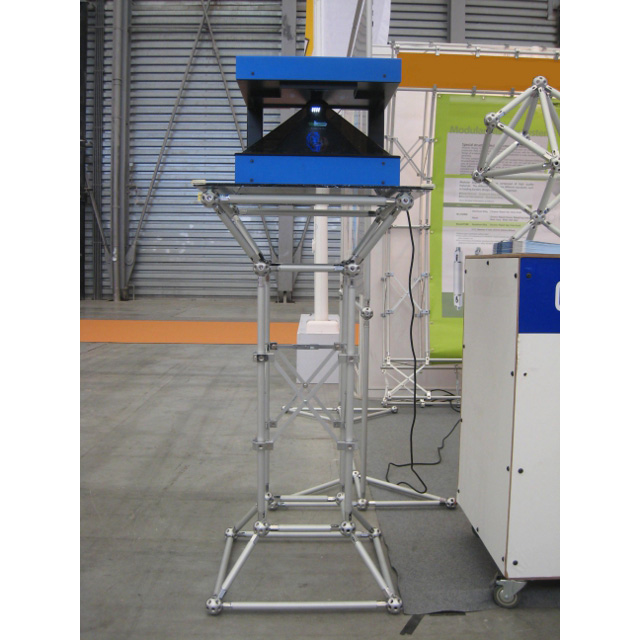

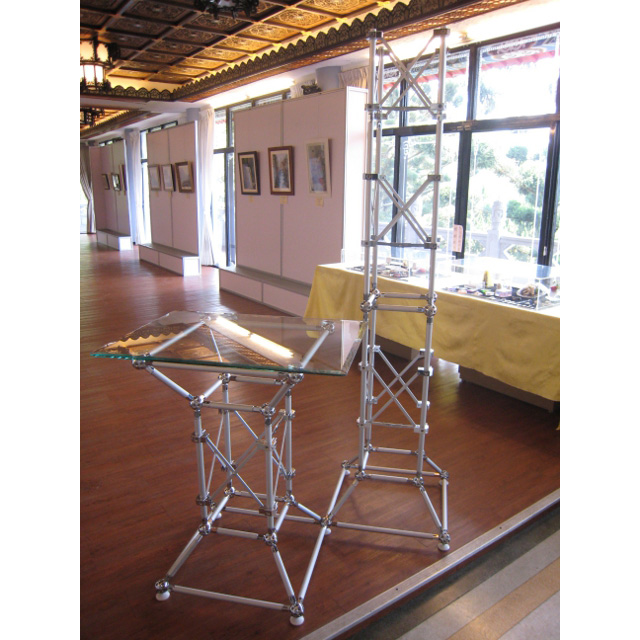

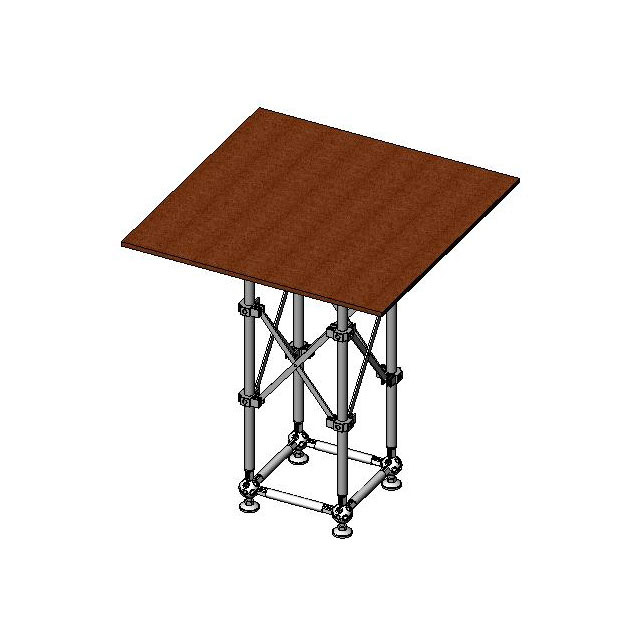

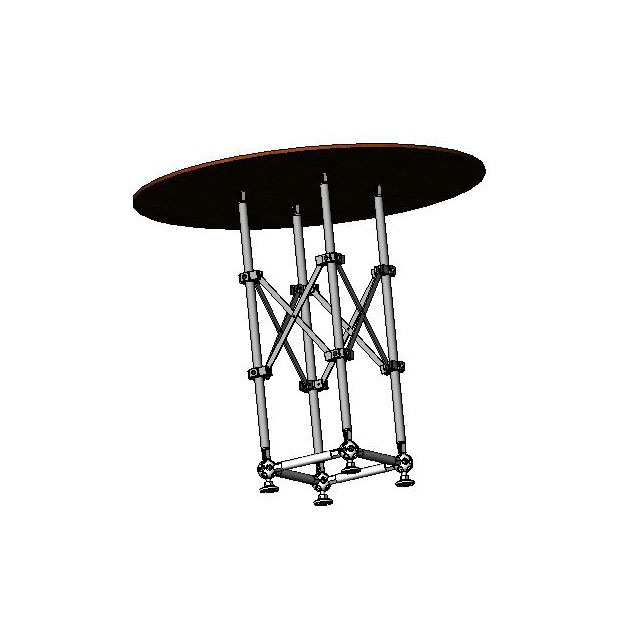

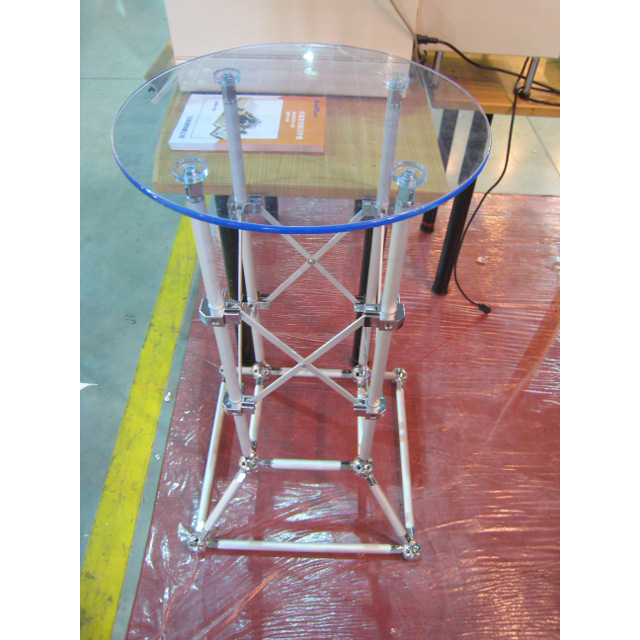

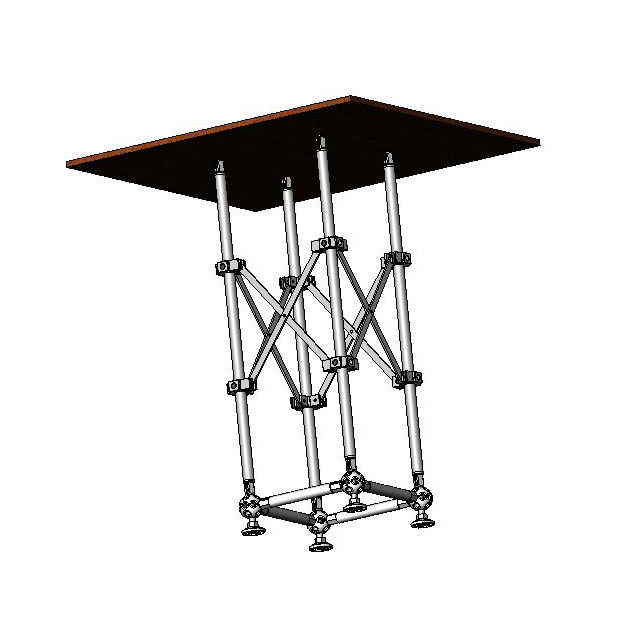

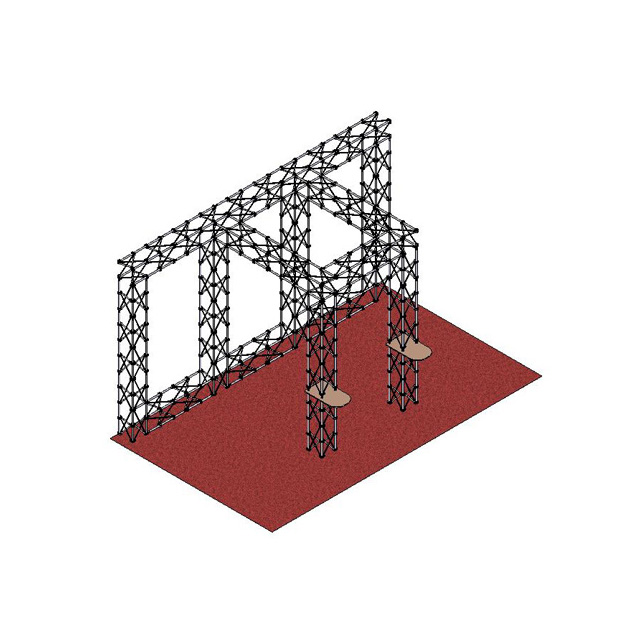

Example
