Led Light Boxes

Suspension System

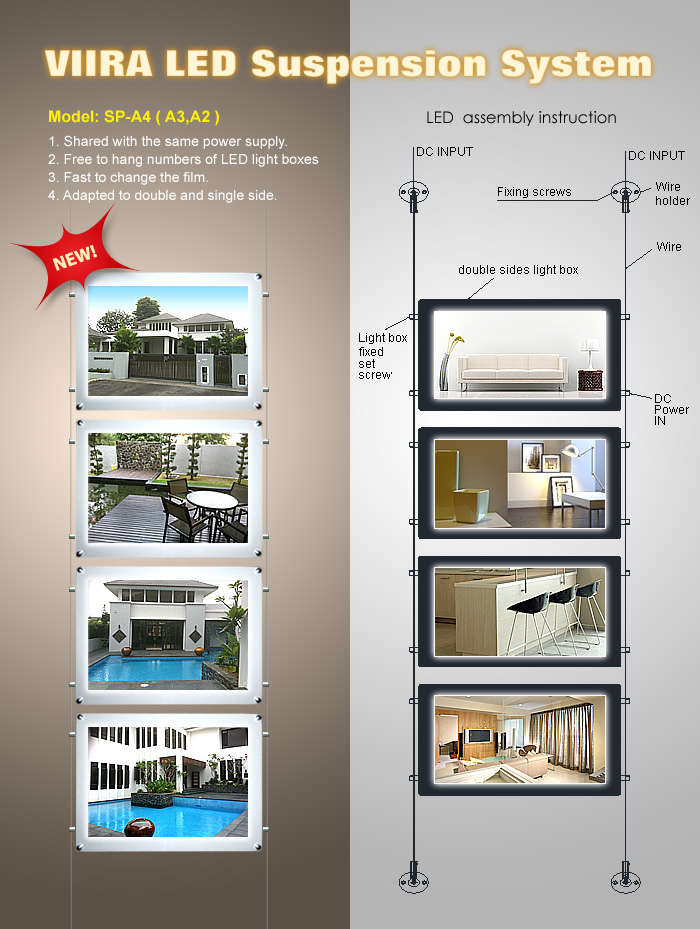

LED Suspension System

ITEM SP-A4-S SP-A4-D SP-A3-S
View Side One Side Double Side One Side
Panel Size LxWxT 347*260*9 347*260*11 470*347*9
Film Size LxW (mm) 303*214 303*214 424*301
View Size LxW (mm) 297*210 297*210 420*297
Panel Material PMMA PMMA PMMA
Color Temperature 6500 K 6500 K 6500 K
Brightness (LUX) 2500-3500 (LUX) 1000-1500 (LUX) 2500-3500 (LUX)
Luminance Uniformity 75% average totally 75% average totally 75% average totally
Mounting Type By Wire By Wire By Wire
Avg. Life 30000 hour 30000 hour 30000 hour
Environment For indoor For indoor For indoor
Single Box Power Consumption 7 W 7 W 9.6 W
Power Specification 100V~240V 60/50Hz 100V~240V 60/50Hz 100V~240V 60/50Hz
Power output DC 12V/1A DC 12V/1A DC 12V/1A
Light box plate weight 850 g 970 g 1750 g
Wire Holder Diameter 45*H 64(mm) Diameter 45*H 64(mm) Diameter 45*H 64(mm)
Brass Holder for Panel x 4 pcs Diameter 9*H 9(mm) Diameter 9*H 9(mm) Diameter 9*H 9(mm)
Inner box size 38*28*4.5(cm) 38*28*4.5(cm) 49*35.5*5(cm)
Inner box / Gross Weight 1.38 Kg 1.6 kg 2.8 kg
Carton size 48*40*31(cm) / Inner box *5 48*40*31(cm) / Inner box *5 51*37*27(cm) / Inner box *5
Net weight 7Kgs / Inner box *5 8Kgs / Inner box *5g 14Kgs / Inner box *5
Gross Weight 8Kgs / Inner box *5 9Kgs / Inner box *5 15Kgs / Inner box *5
※ Power output in DC 12V/1A for your reference only.


ITEM SP-A3-D SP-A2-S SP-A2-D
View Side Double Side One Side Double Side
Panel size LxWxT 470*347*11 694*520*10 694*520*13
Film Size LxW (mm) 424*301 588*414 588*414
View Size LxW (mm) 420*297 584*410 584*410
Panel Material PMMA PMMA PMMA
Color Temperature 6500 K 6500 K 6500 K
Brightness (LUX) 1500-2000 (LUX) 2500-3500 (LUX) 2000-2500 (LUX)
Luminance Uniformity 75% average totally 75% average totally 75% average totally
Mounting Type By Wire By Wire By Wire
Avg. Life 30000 hour 30000 hour 30000 hour
Environment For indoor For indoor For indoor
Single Box Power Consumption 9.6W 13W 21.6W
Power Specification 100V~240V 60/50Hz 100V~240V 60/50Hz 100V~240V 60/50Hz
Power output DC 12V/1A DC 12V/2A DC 24V/2A
Panel weight 2150 g 3.5 Kg 4.8 Kg
Wire Holder Diamete 45*H 64(mm) Diameter 45*H 64(mm) Diameter 45*H 64(mm)
Brass Holder for Panel x 4 pcs Diameter 9*H 9(mm) Diameter 9*H 9(mm) Diameter 9*H 9(mm)
Inner box size 49*35.5*5(cm) 74*56*7(cm) 74*56*7(cm)
Inner box / Gross Weight 3.2 Kg 4 kg 5.3 kg
Carton size 51*37*27(cm) / Inner box *3 76*58*27(cm) / Inner box *3 76*58*27(cm) / Inner box *3
Net weight 16Kgs/ Inner box *3 12Kgs / Inner box *3 16Kgs / Inner box *3
Gross Weight 17Kgs / Inner box *3 14Kgs / Inner box *3 27Kgs / Inner box *3
※ Power output in DC 12V/1A for your reference only.
