1.5mm (1/16") Cable – panel /shelf supports

Vertical Panel Supports
Support Preview Model No. Size Description Sketch
3mm(1/8") PS 13-23-3 13 (1/2") dia. x
23 (7/8") L (mm)		 Poster holder
support for panel -
up to 3mm (1/8")

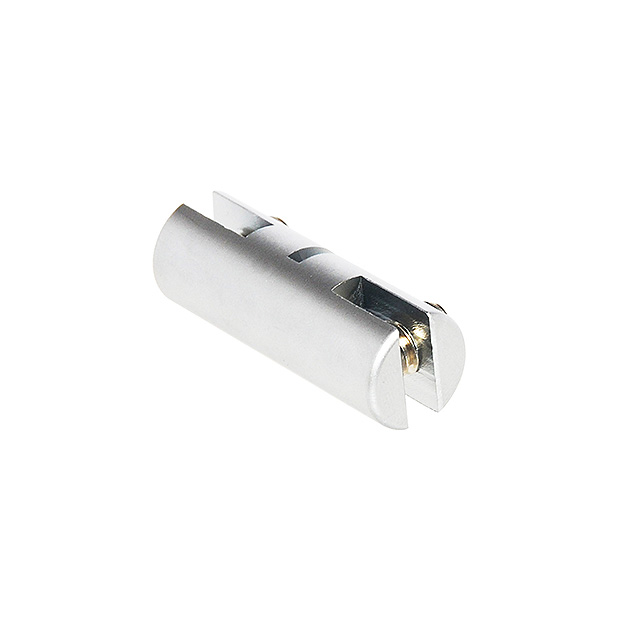

PS 13-36.5-3 13 (1/2") dia. x
36.5 (1-3/8") L (mm)		 Twin poster holder
support for panel -
up to 3mm (1/8")

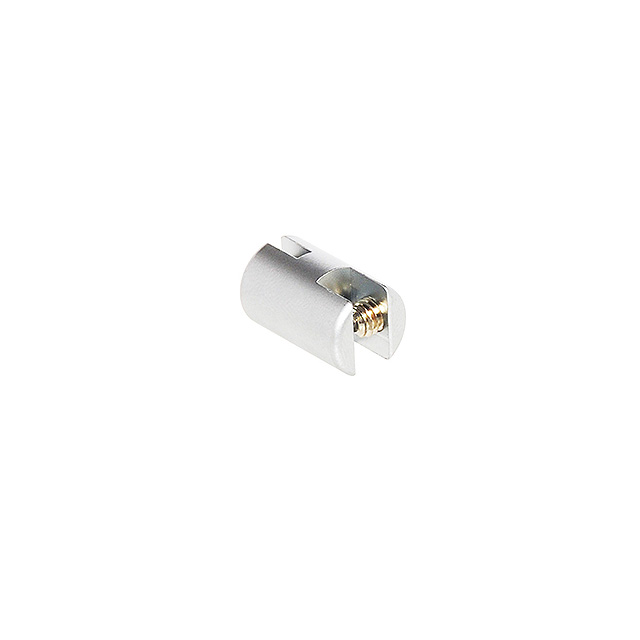

4mm(5/32") PS 10-16-4 10 (3/8") dia. x
16 (5/8") L (mm)		 Poster holder
support for panel -
up to 4mm(5/32")
PS 10-20-4 10 (3/8") dia. x
20 (25/32") L (mm)		 Twin poster holder
support for panel -
up to 4mm(5/32")

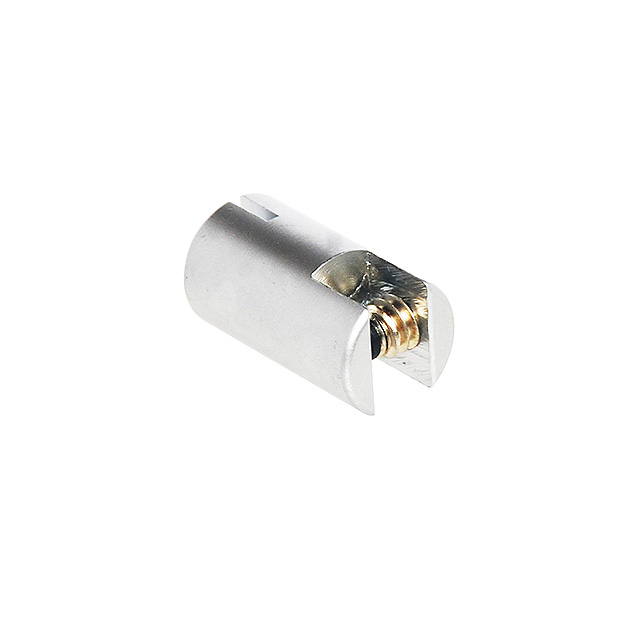

6mm(1/4") PS 15-27-6 15 (19/32") dia. x
27 (1-1/16") L (mm)		 Single panel support
up to 6mm (1/4")
PS 15-35-6 15 (19/32") dia. x
35 (1-3/8") L (mm)		 Twin panel support
up to 6mm (1/4")

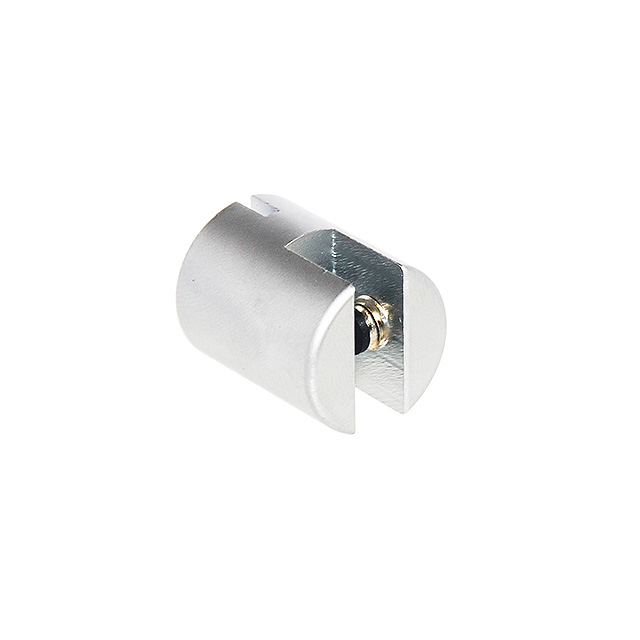

PS 18.5-23-6 18.5 (3/4") dia. x
23 (7/8") L (mm)		 Single panel support
up to 6mm (1/4")

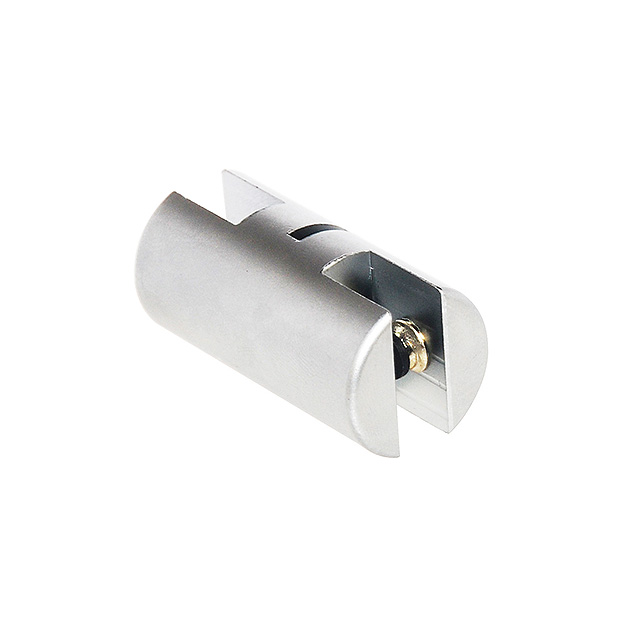

PS 18.5-37-6 18.5 (3/4") dia. x
37 (1-3/8") L (mm)		 Twin panel support
up to 6mm (1/4")

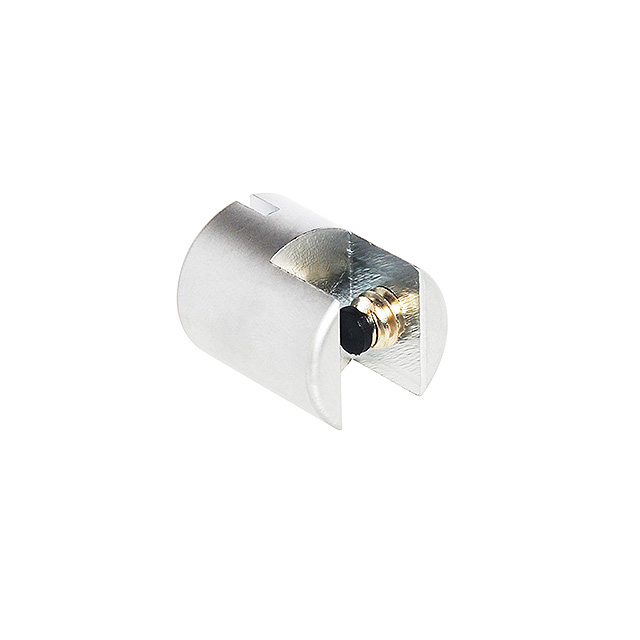

10mm(3/8") PS 18.5-23-10 18.5 (3/4") dia. x
23 (7/8") L (mm)		 Single panel support
up to 10mm (3/8")

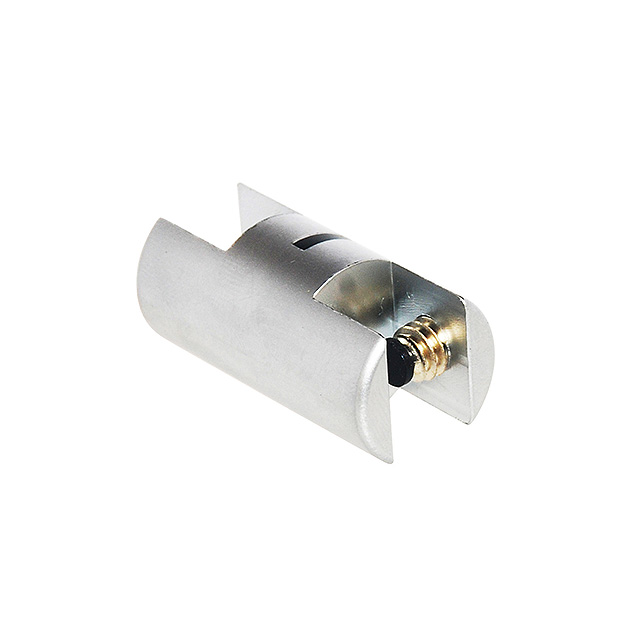

PS 18.5-37-10 18.5 (3/4") dia. x
37 (1-3/8") L (mm)		 Twin panel support
up to 10mm (3/8")

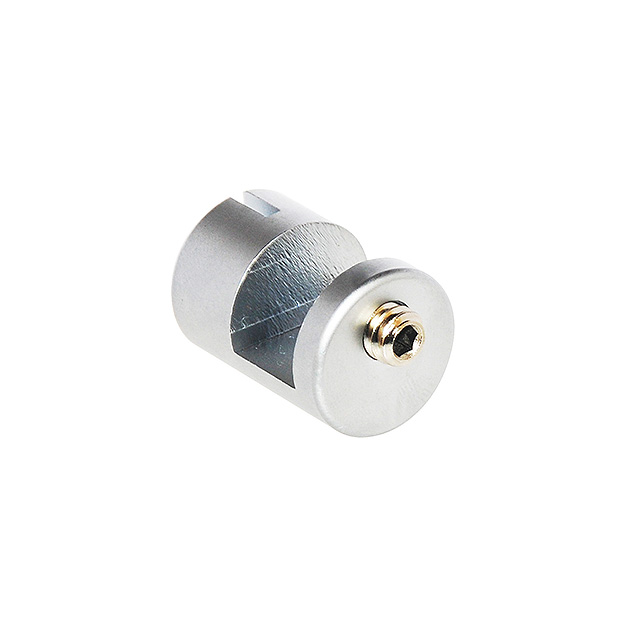

PS 18.5-25.5 18.5 (3/4") dia. x
25.5 (15/16") L (mm)		 Panel support for top / bottom
up to 10mm (3/8")


Shelf Supports
Support Preview Model No. Size Description Sketch

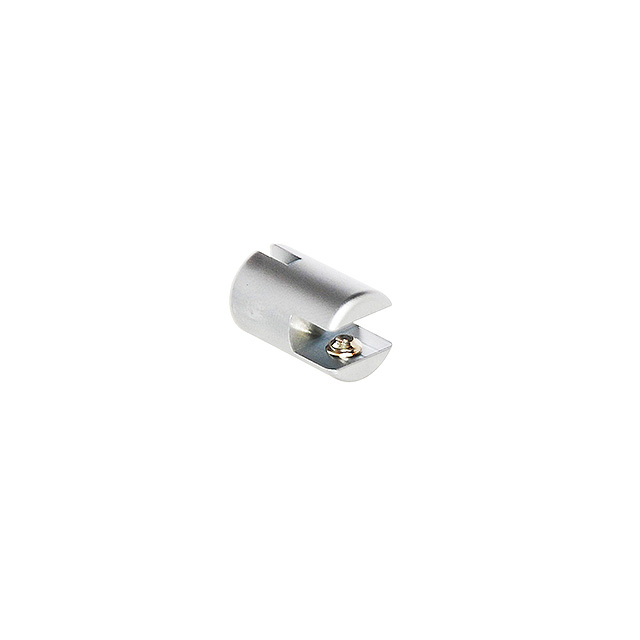

4mm(5/32") SS 10-16-4 10 (3/8”) dia. x
16 (5/8”) L (mm)		 Shelf Support
4mm (5/32")

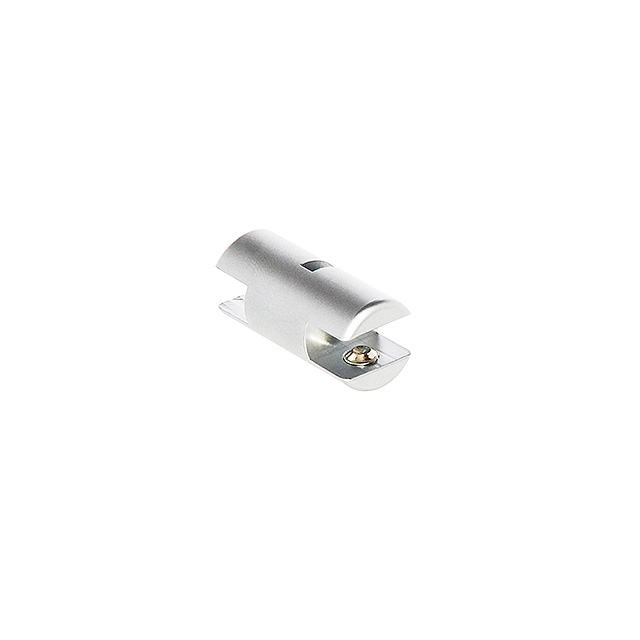

SS 10-20-4 10 (3/8”) dia. x
20 (25/32”) L (mm)		 Twin Shelf support
4mm (5/32")

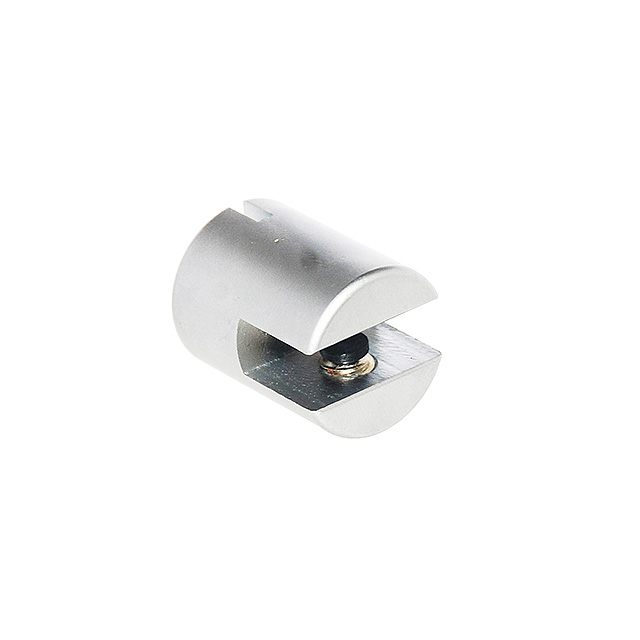

6mm(1/4") SS 18.5-23-6 18.5 (3/4") dia. x
23 (7/8") L (mm)		 Shelf support.
up to 6mm (1/4")

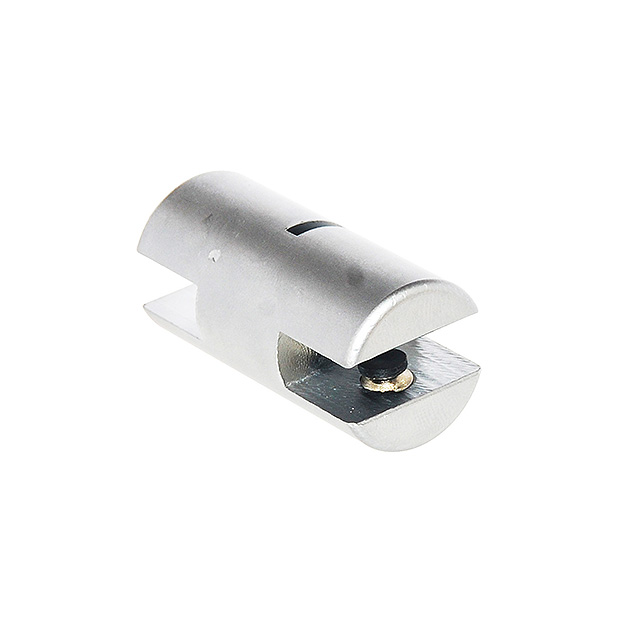

SS 18.5-37-6 18.5 (3/4") dia. x
37 (1-3/8") L (mm)		 Twin shelf support
up to 6mm (1/4")

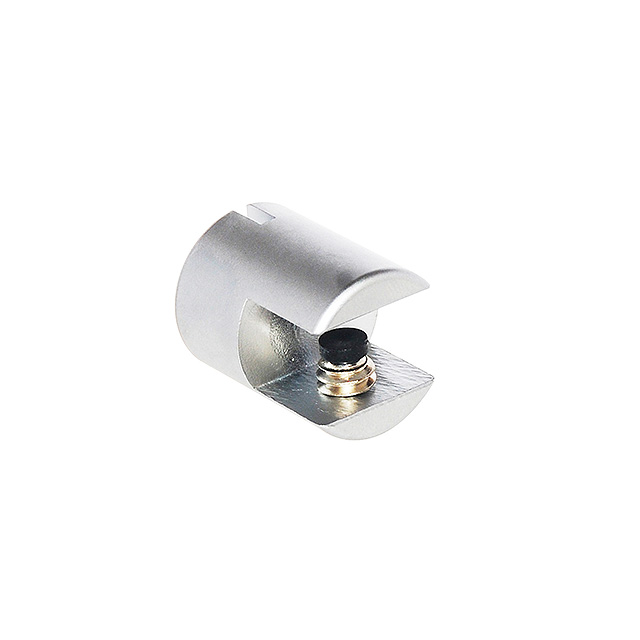

10mm(3/8") SS 18.5-23-10 18.5 (3/4") dia. x
23 (7/8") L (mm)		 Shelf support
up to 10mm (3/8")

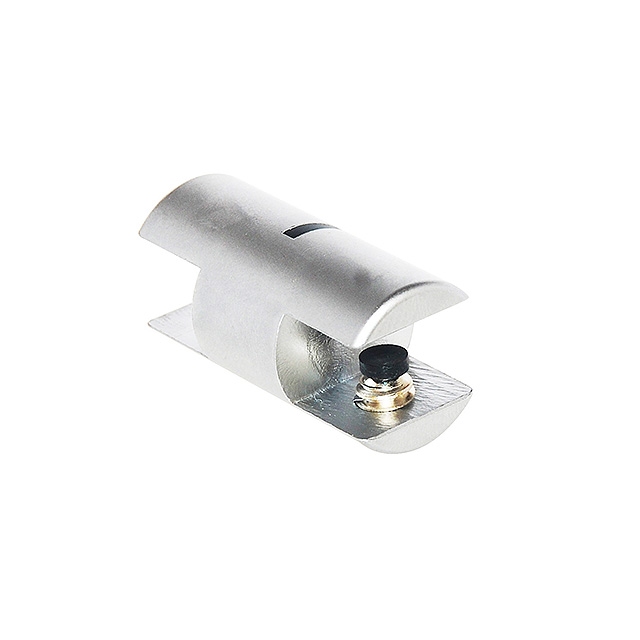

SS 18.5-37-10 18.5 (3/4") dia. x
37 (1-3/8") L (mm)		 Twin shelf support
up to 10mm (3/8")

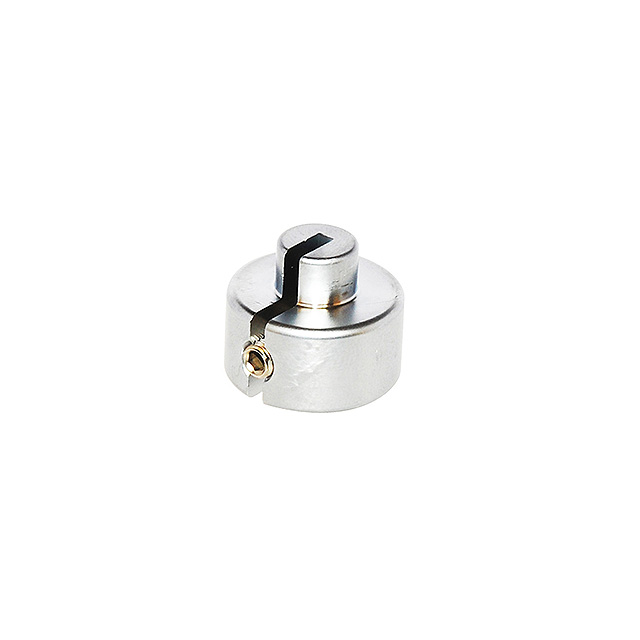

SS 18.5-10 18.5 (3/4") dia. (mm) Under-shelf support
shelf hole size 10mm (3/8")


Swivel Supports For Panels / Shelves
Support Preview Model No. Size Description Sketch

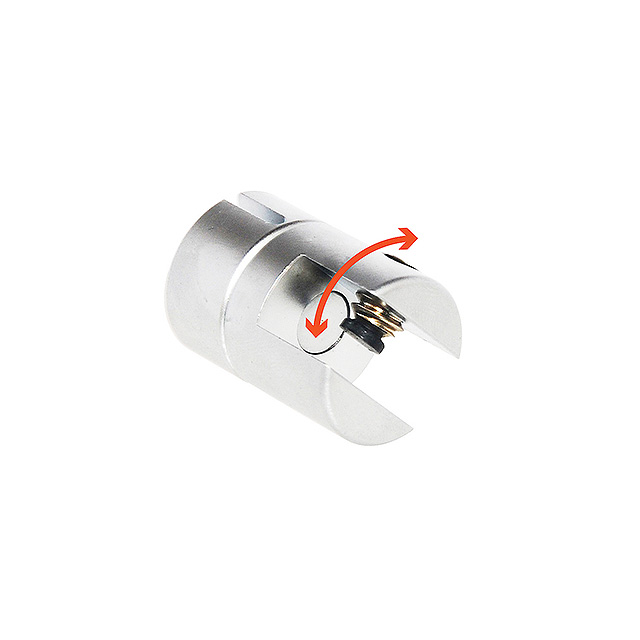

8mm(5/16") SPS 18.5-26.5-8 18.5 (3/4") dia. x
26.5 (1") L (mm)		 Swivel clamp for panel / shelf
up to 8mm (5/16")

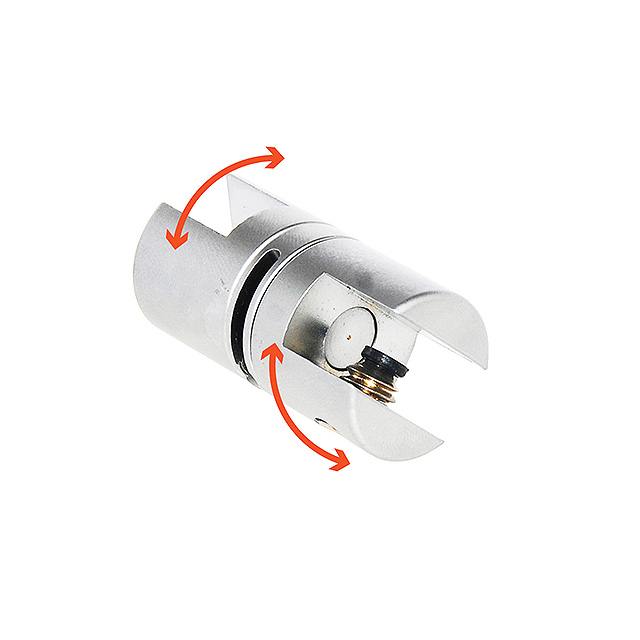

SPS 18.5-37-8 18.5 (3/4") dia. x
37 (1-3/8") L (mm)		 Twin swivel clamps for panels / shelves
up to 8mm (5/16")


Supports For Screw Fix Panels
Support Preview Model No. Size Description Sketch

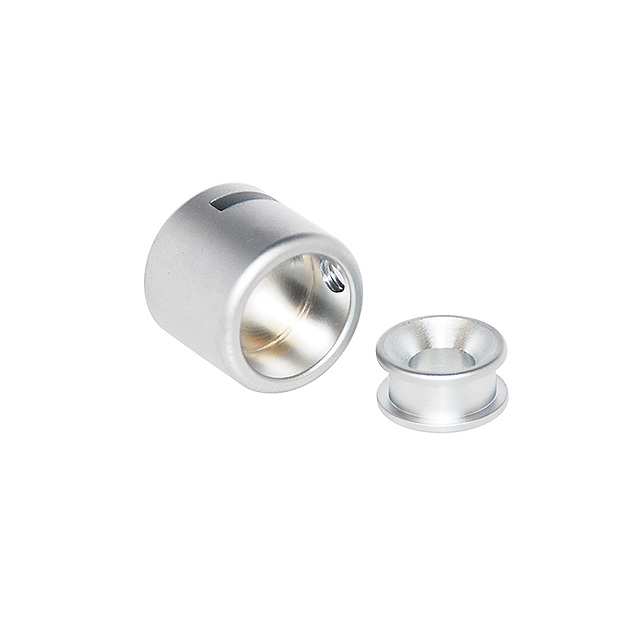

  S 16-14 16 (5/8") dia. x
14 (35/64") L (mm)		 Single support for any item
fitted with boss fitting

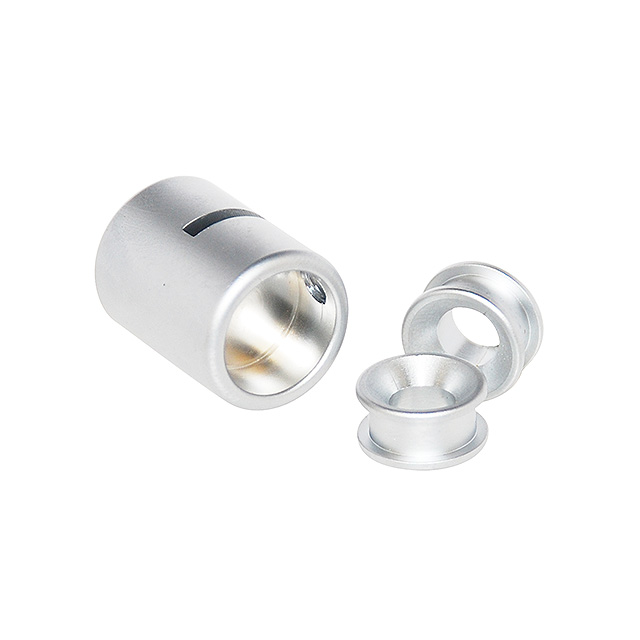

  S 16-20 16 (5/8") dia. x
20 (25/32") L (mm)		 Double support for any item fitted with boss fitting


Supports For Panels With Holes
Support Preview Model No. Size Description Sketch

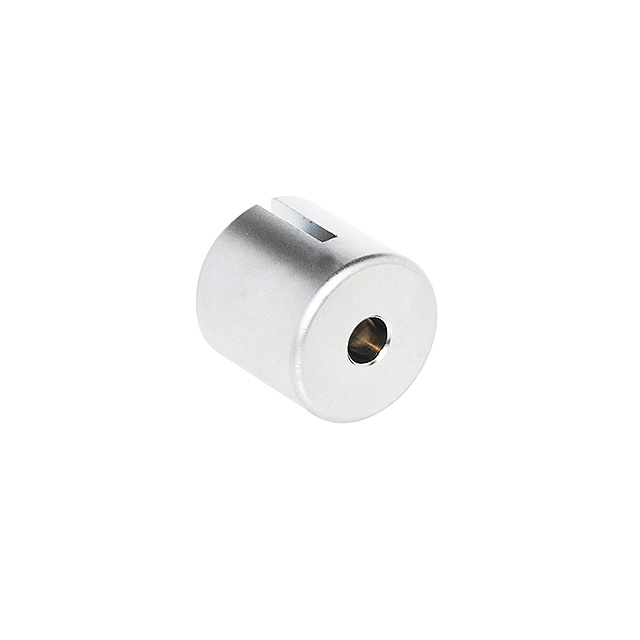

  PS 18.5-18 18.5 (3/4") dia. x
18 (11/16" ) L (mm)		 Frame support
  PS 18.5-1 18.5 (3/4") dia. (mm) Pierced support for panels
5mm dia. (3/16") hole fix
  PS 18.5-2 18.5 (3/4") dia. (mm) Twin pierced support for panels
5mm dia. (3/16") hole fix

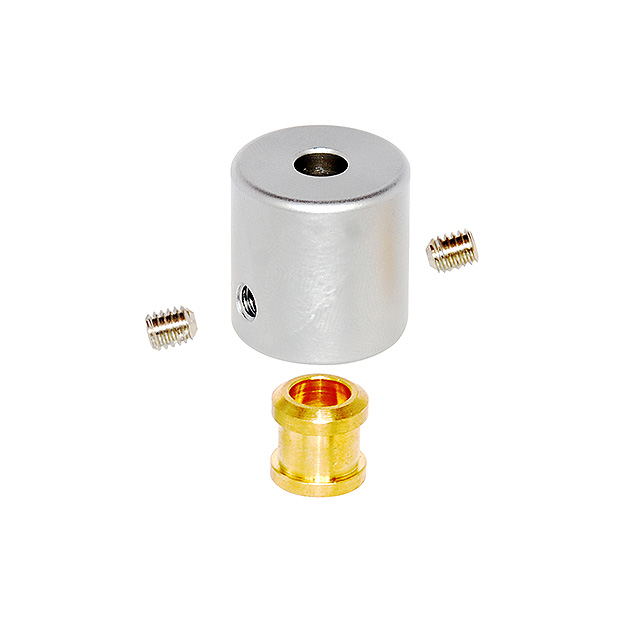

  TF 18.5-19 18.5 (3/4") dia. x
19 (3/4") L (mm)		 Top fixing with cable grip


  • Material : Brass
  • Finish : Chrome / Satin Chrome
  • Material : Aluminum
  • Finish : Silver anodised / Brass anodised / Stainless anodised
