Products

6mm (1/4") Rod – panel /shelf supports

Vertical Panel Supports
Support Preview Model No. Size Description Sketch

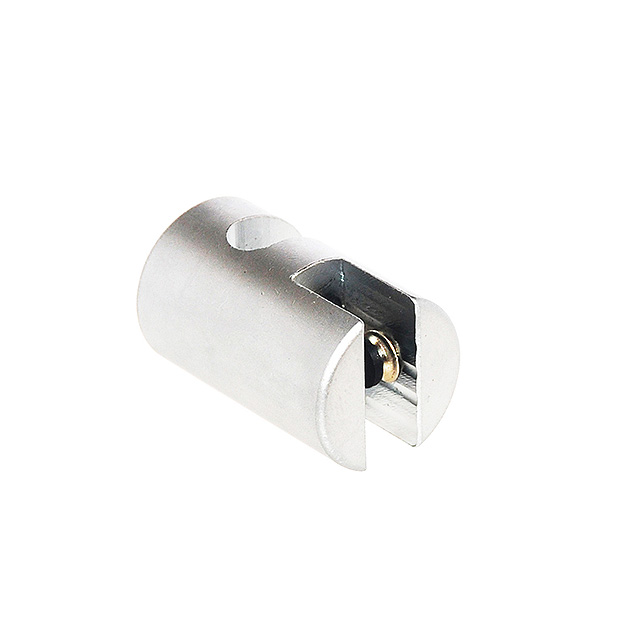

6mm(1/4") PS 18.5-30-6-6 18.5 (3/4") dia. x
30 (1-1/8") L (mm)		 Single panel support
up to 6mm (1/4")

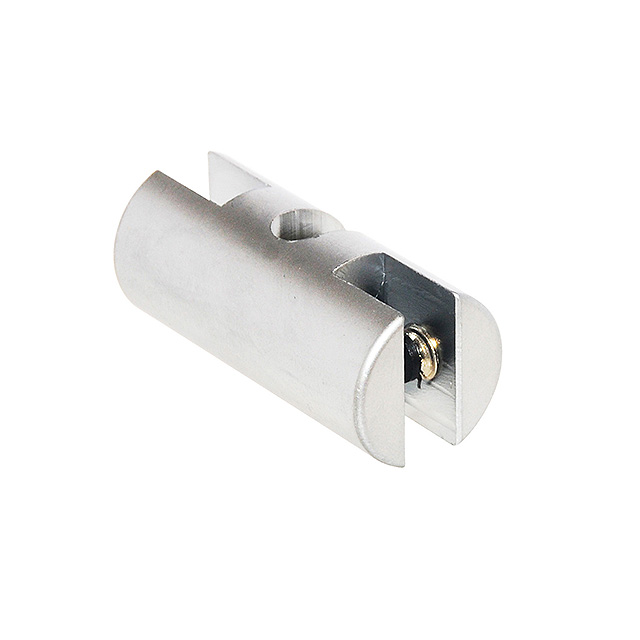

PS 18.5-41.3-6-6 18.5 (3/4") dia. x
41.3 (1-5/8") L (mm)		 Twin panel support
up to 6mm (1/4")

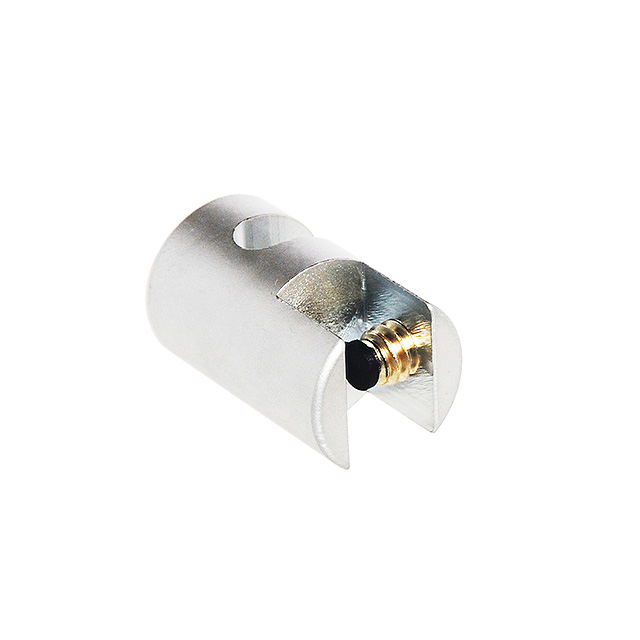

10mm(3/8") PS 18.5-30-10-6 18.5 (3/4") dia. x
30 (1-1/8") L (mm)		 Single panel support
up to 10mm (3/8")

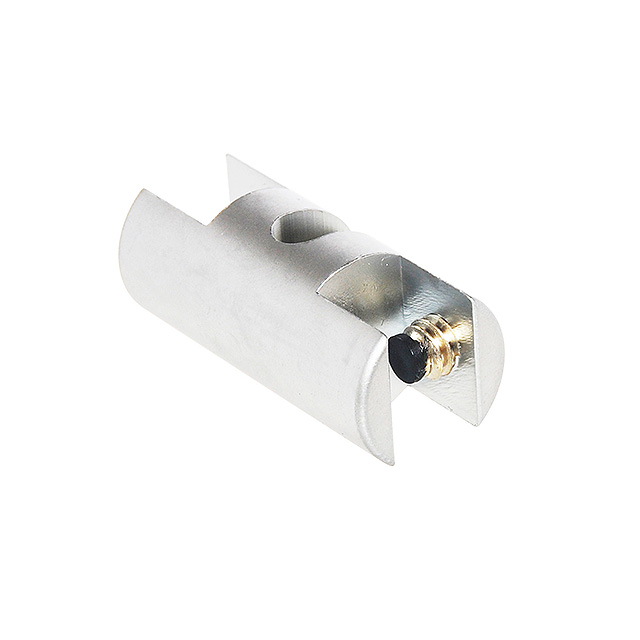

PS 18.5-41.3-10-6 18.5 (3/4") dia. x
41.3 (1-5/8") L (mm)		 Twin panel support
up to 10mm (3/8")

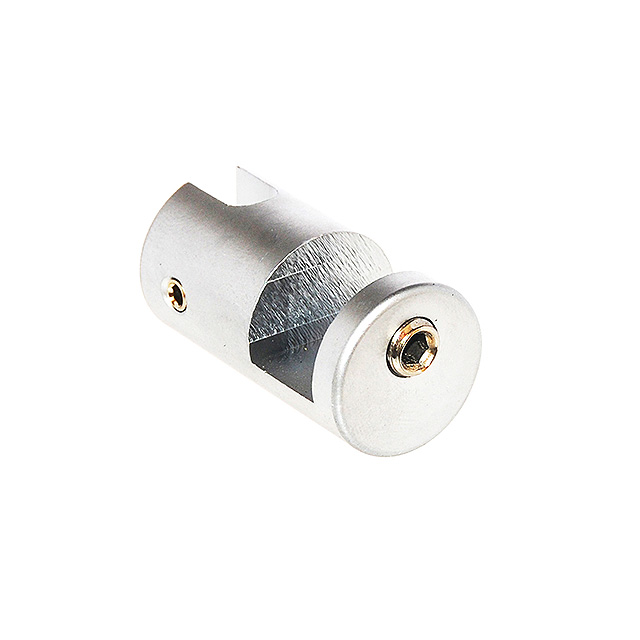

PS 18.5-34-10-6 18.5 (3/4") dia. x
34 (1-3/8") L (mm)		 Panel support for top / bottom
up to 10mm (3/8")


Shelf Supports
Support Preview Model No. Size Description Sketch

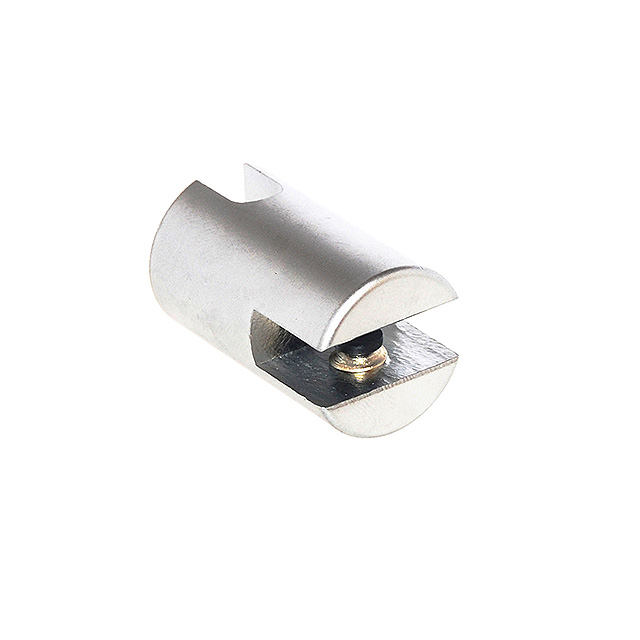

6mm(1/4") SS 18.5-30-6-6 18.5 (3/4") dia. x
30 (1-1/8") L (mm)		 Shelf support.
up to 6mm (1/4")

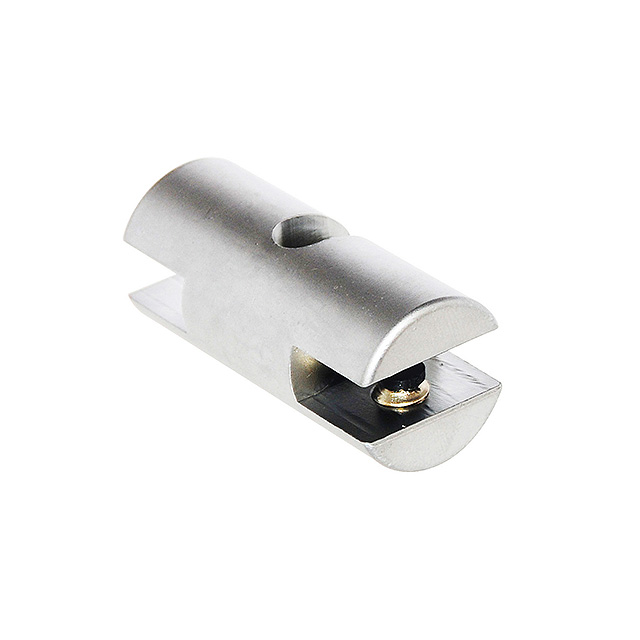

SS 18.5-41.3-6-6 18.5 (3/4") dia. x
41.3 (1-5/8") L (mm)		 Twin shelf support
up to 6mm (1/4")

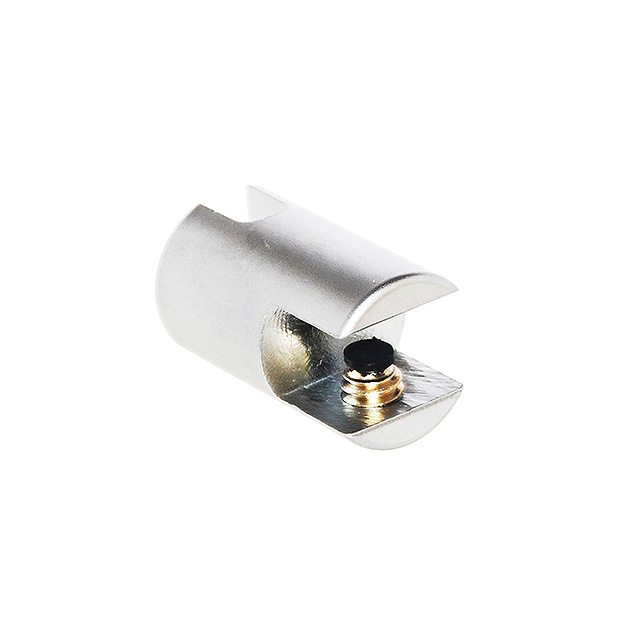

10mm(3/8") SS 18.5-30-10-6 18.5 (3/4") dia. x
30 (1-1/8") L (mm)		 Shelf support.
up to 10mm (3/8")

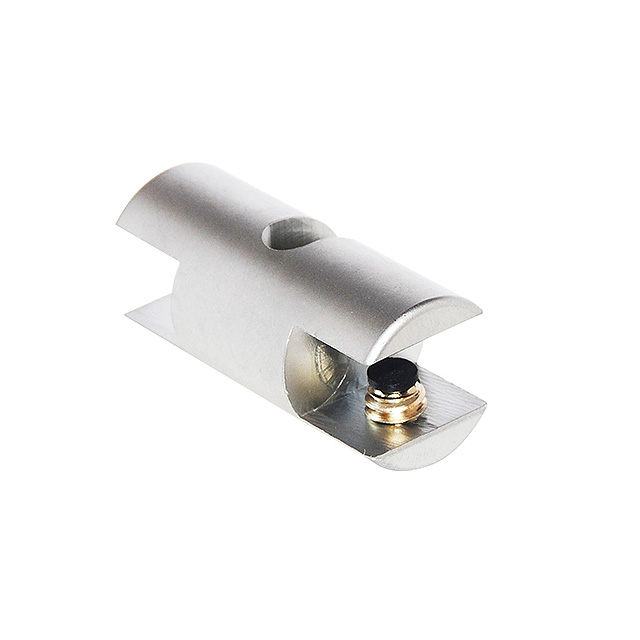

SS 18.5-41.3-10-6 18.5 (3/4") dia. x
41.3 (1-5/8") L (mm)		 Twin shelf support
up to 10mm (3/8")
SS 18.5-10-6 18.5 (3/4") dia. (mm) Under-shelf support
shelf hole size 10mm (3/8")


Swivel Supports For Panels / Shelves
Support Preview Model No. Size Description Sketch

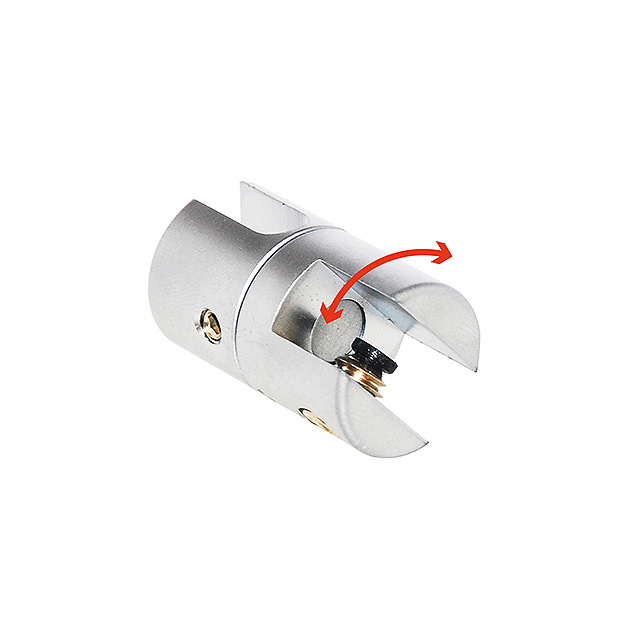

8mm(5/16") SPS 18.5-31-8-6 18.5 (3/4") dia. x
31 (1-1/8") L ( mm)		 Swivel clamp for panel / shelf.
up to 8mm (5/16")

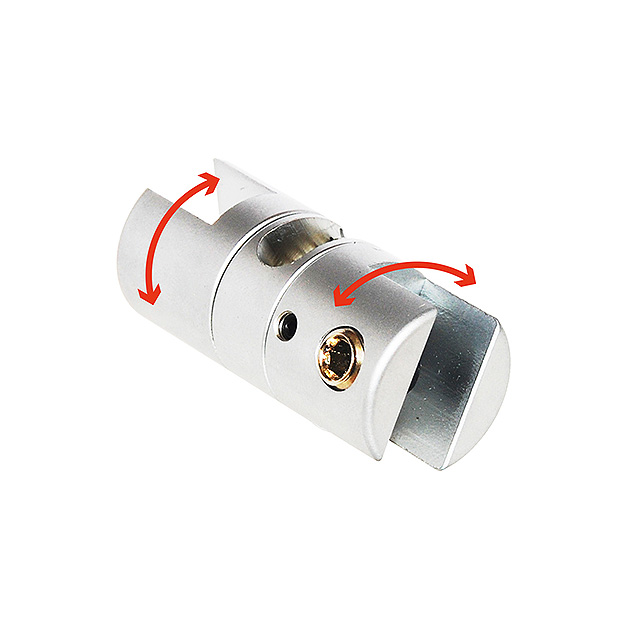

SPS 18.5-41-8-6 18.5 (3/4") dia. x
41 (1-5/8") L (mm)		 Twin swivel clamps for panels / shelves.
up to 8mm (5/16")


Wall Mounted Fittings For Rods
Support Preview Model No. Size Description Sketch

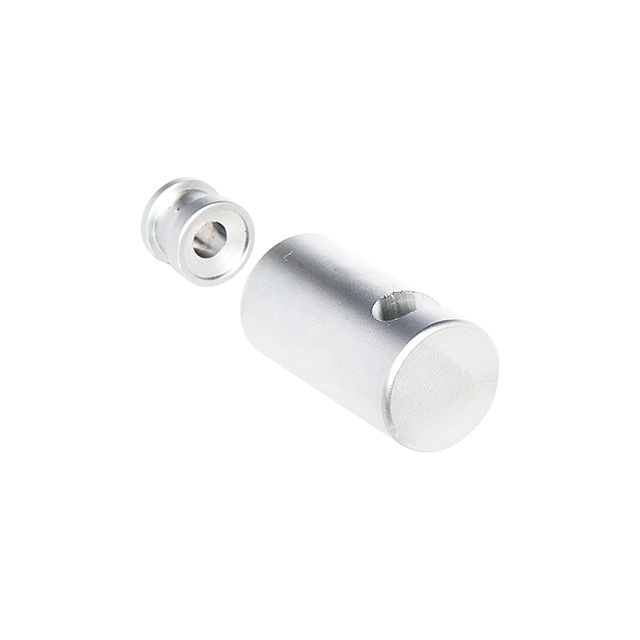

  WF 18.5-35.5-6 18.5 (3/4") dia. x
35.5 (1-3/8") L (mm)		 Wall mounted fitting for
6mm (1/4") rod

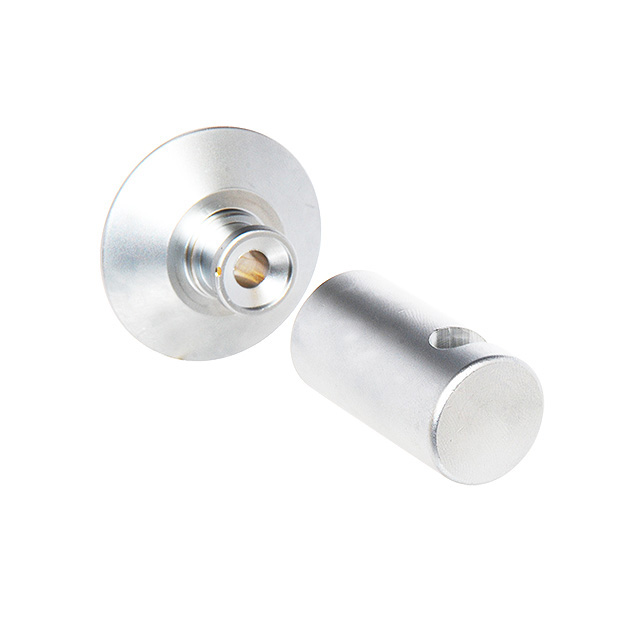

  WF 18.5-40.5-6P 18.5 (3/4") dia. x
40.5 (1-5/8") L
(mm) 		Wall mounted fitting with
plate for 6mm (1/4") rod

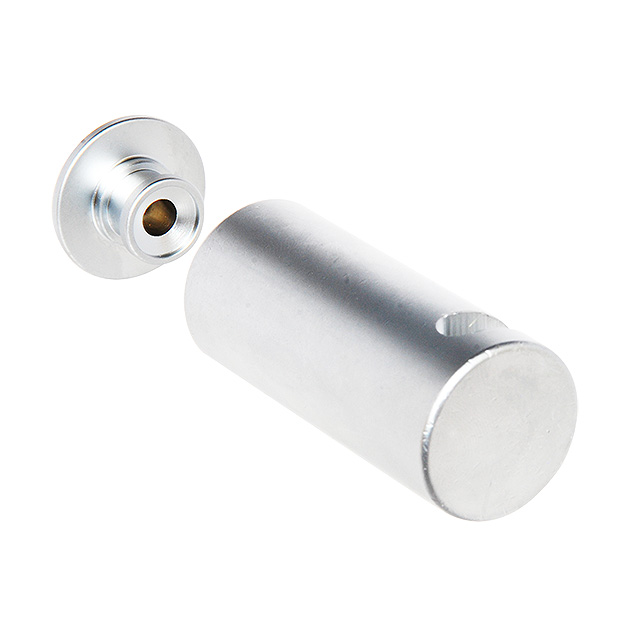

  WF 24.5-57-6 24.5 (15/16") dia. x
57 (2-1/4") L (mm)		 Wall mounted fitting for
6mm (1/4") rod

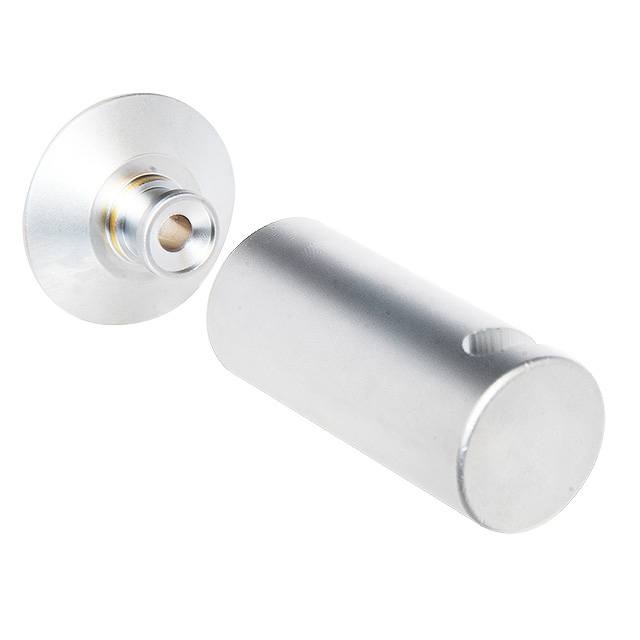

  WF 24.5-62-6P 24.5 (15/16") dia. x
62 (2-1/2") L (mm)		 Wall mounted fitting with
plate for 6mm (1/4") rod


Supports For Screw Fix Panels
Support Preview Model No. Size Description Sketch

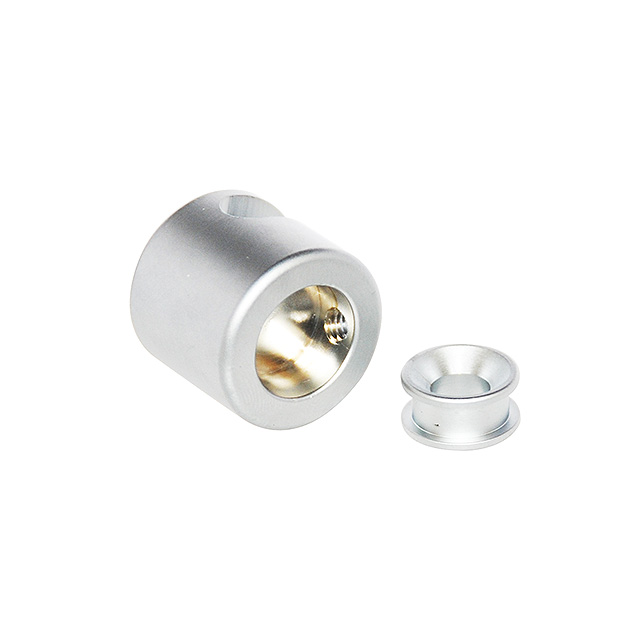

  S 20-18-6 20 (25/32") dia. x
18 (45/64") L (mm) 		Single support for any item fitted with boss fitting.

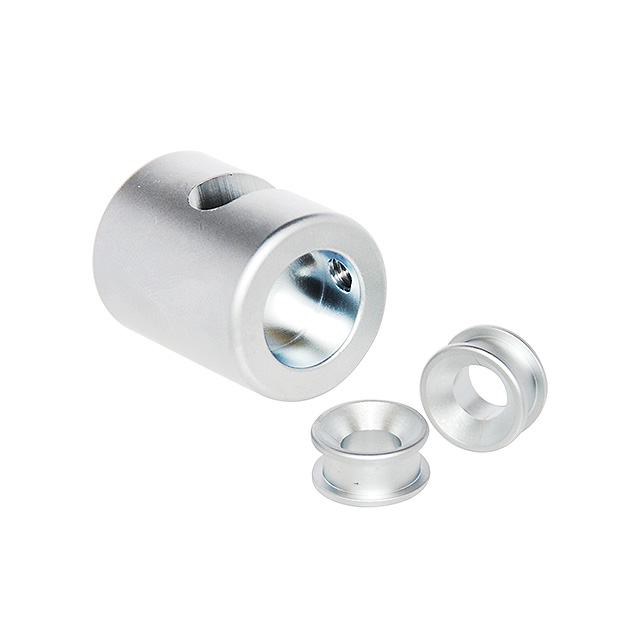

  S 20-25-6 20 (25/32") dia. x
25 (63/64") L (mm)		 Double support for any item fitted with boss fitting.


Supports For Panels With Holes
Support Preview Model No. Size Description Sketch

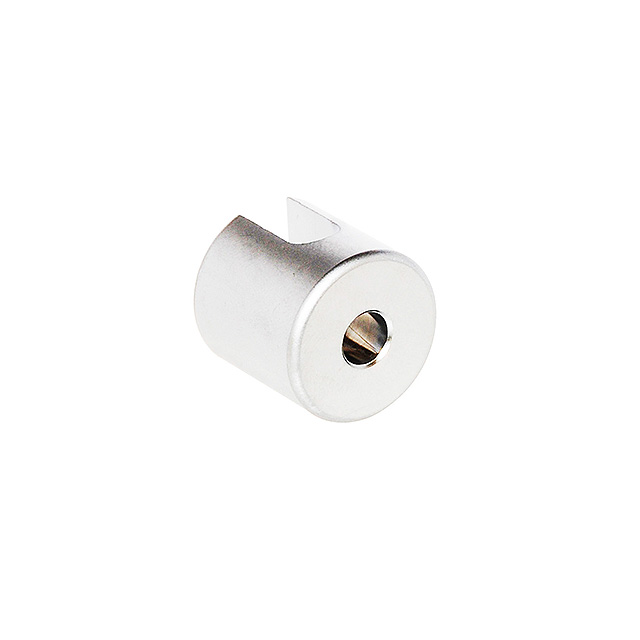

  PS 18.5-18-6 18.5 (3/4") dia. x
18 (11/16") L (mm)		 Frame support

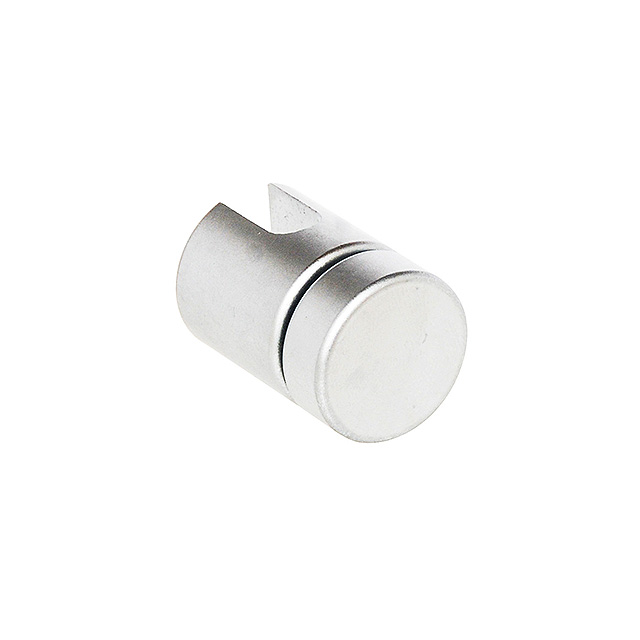

  PS 18.5-5-6-1 18.5 (3/4") dia. (mm) Pierced support for panels 5mm dia. (3/16") hole fix

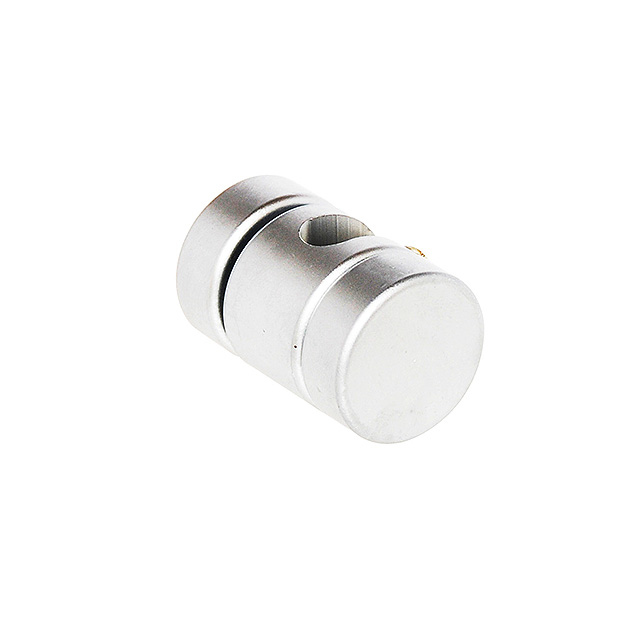

  PS 18.5-5-6-2 18.5 (3/4") dia. (mm) Twin pierced support for panels
5mm dia. (3/16") hole fix

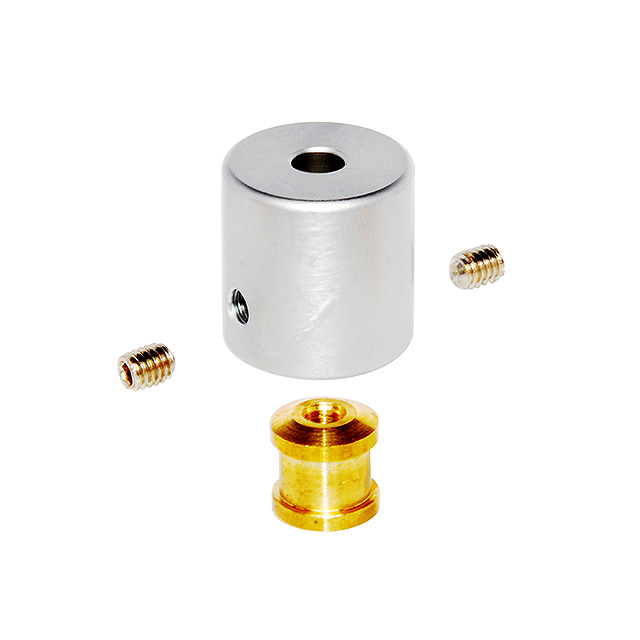

  TF 18.5-19-6 18.5 (3/4") dia. x
19 (3/4") L (mm)		 Top fixing with thread ring


  • Material : Brass
  • Finish : Chrome / Satin Chrome
  • Material : Aluminum
  • Finish : Silver anodised / Brass anodised / Stainless anodised
