10mm(3/8") Rod – panel /shelf supports

Vertical Panel Supports
Support Preview Model No. Size Description Sketch

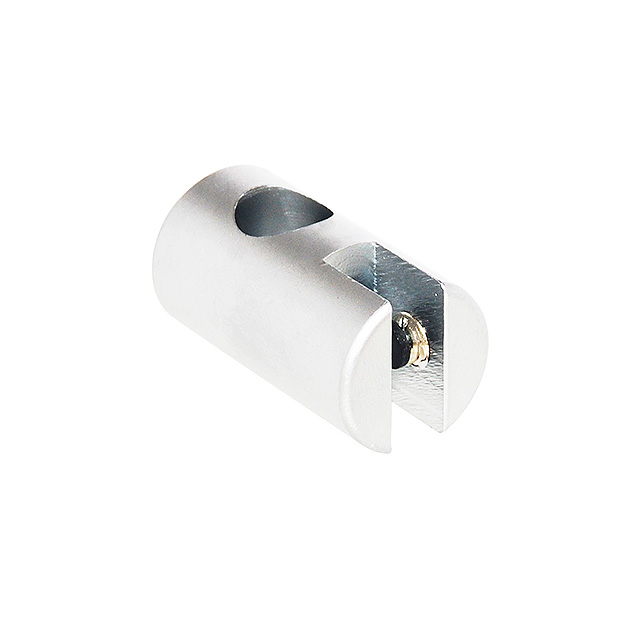

6mm(1/4") PS 18.5-34-6-10 18.5 (3/4") dia. x
34 (1-3/8") L (mm)		 Single panel support
up to 6mm (1/4")

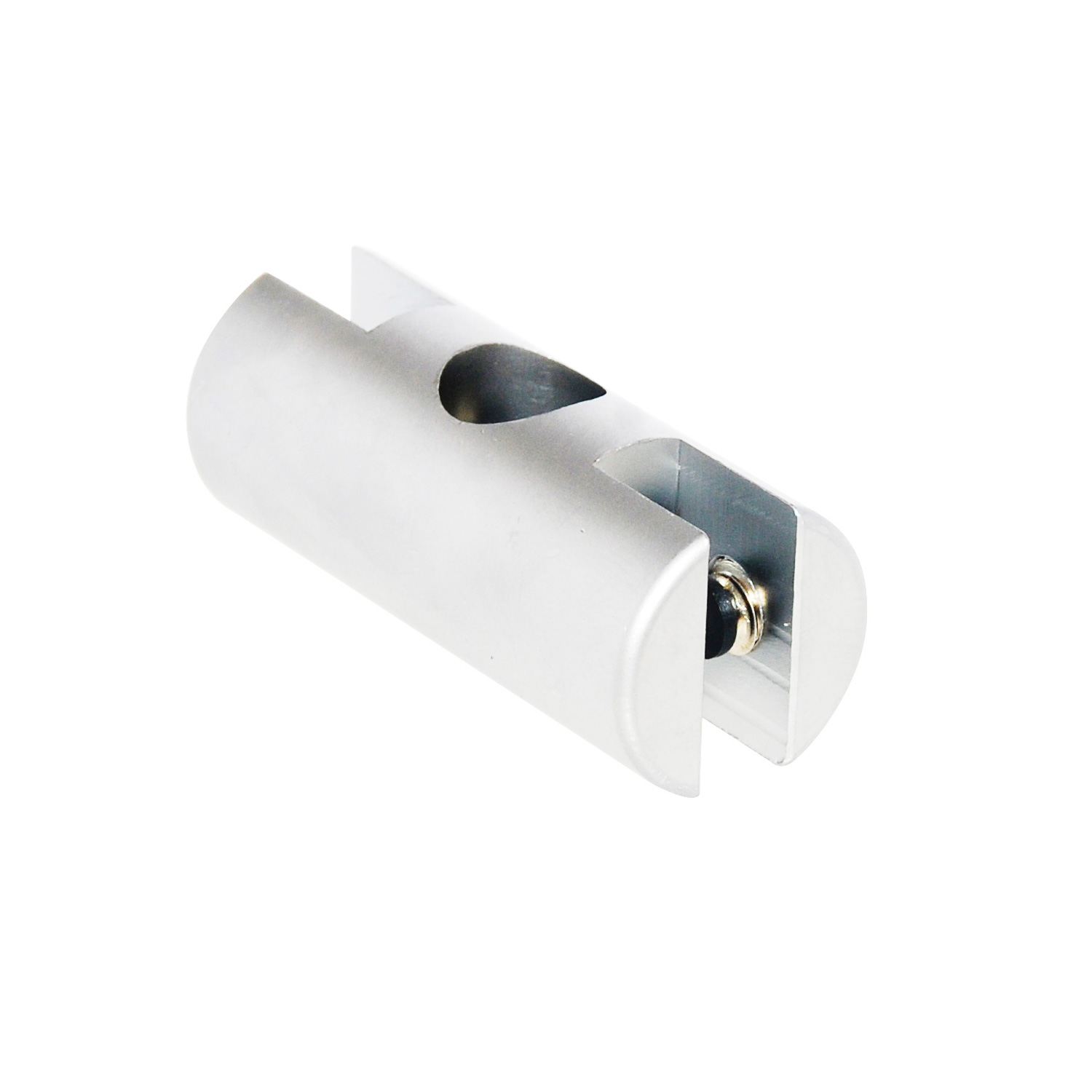

PS 18.5-45.2-6-10 18.5 (3/4") dia. x
45.2 (1-5/8") L (mm)		 Twin panel support
up to 6mm (1/4")

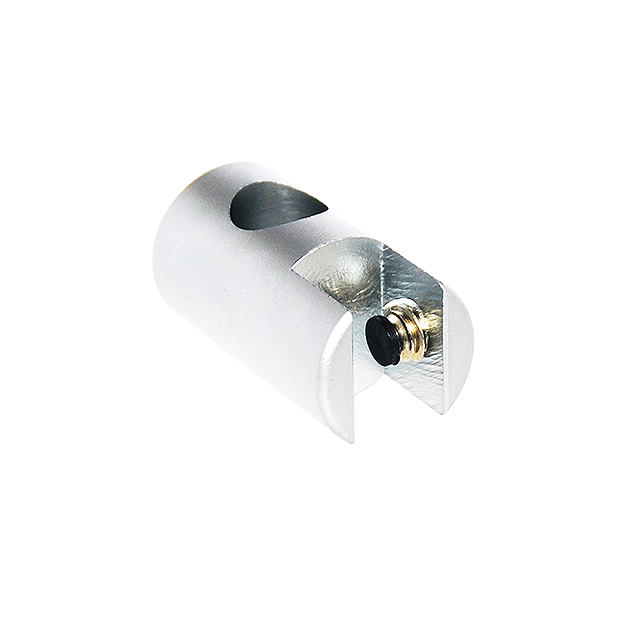

10mm(3/8") PS 18.5-34-10-10 18.5 (3/4") dia. x
34 (1-3/8") L (mm)		 Single panel support
up to 10mm (3/8")

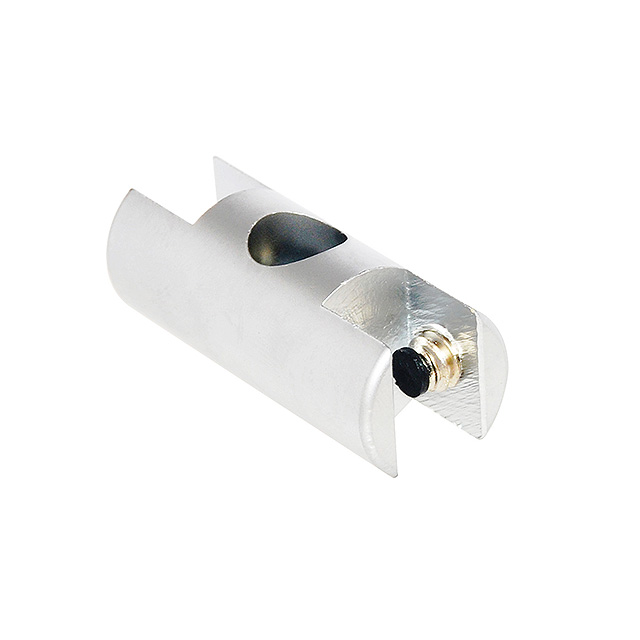

PS 18.5-45.2-10-10 18.5 (3/4") dia. x
45.2 (1-5/8") L (mm)		 Twin panel support
up to 10mm (3/8")


Shelf Supports
Support Preview Model No. Size Description Sketch

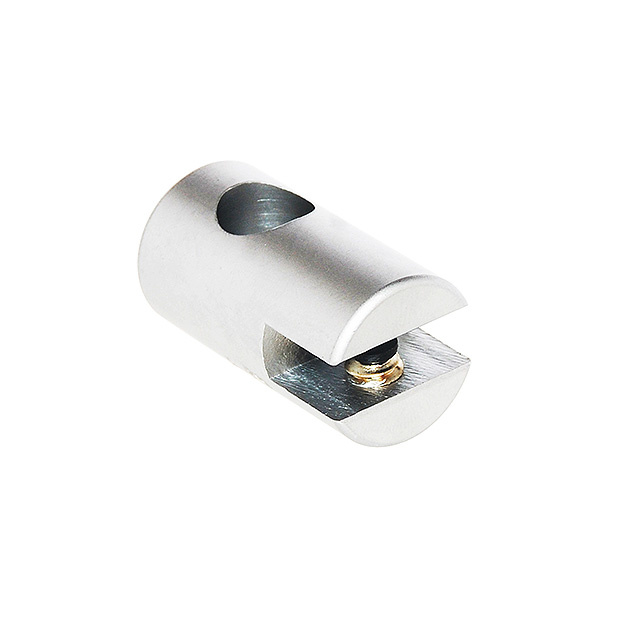

6mm(1/4") SS 18.5-34-6-10 18.5 (3/4") dia. x
34 (1-3/8") L (mm)		 Shelf support.
up to 6mm (1/4")

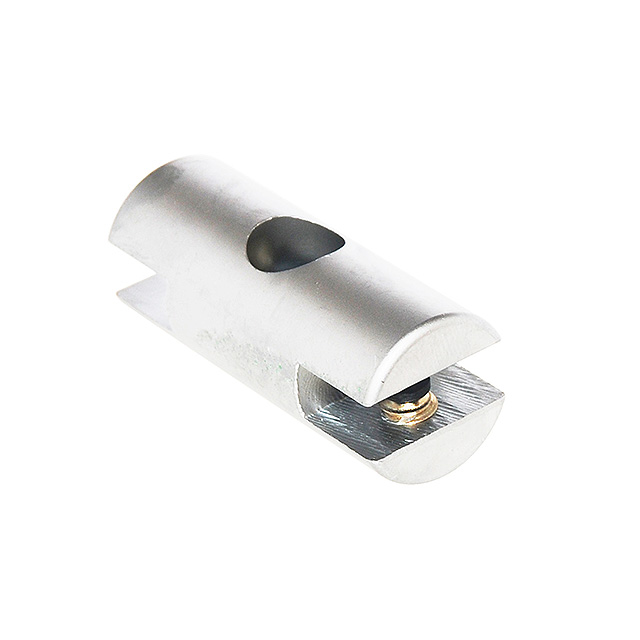

SS 18.5-45.2-6-10 18.5 (3/4") dia. x
45.2 (1-5/8") L (mm)		 Twin shelf support
up to 6mm (1/4")

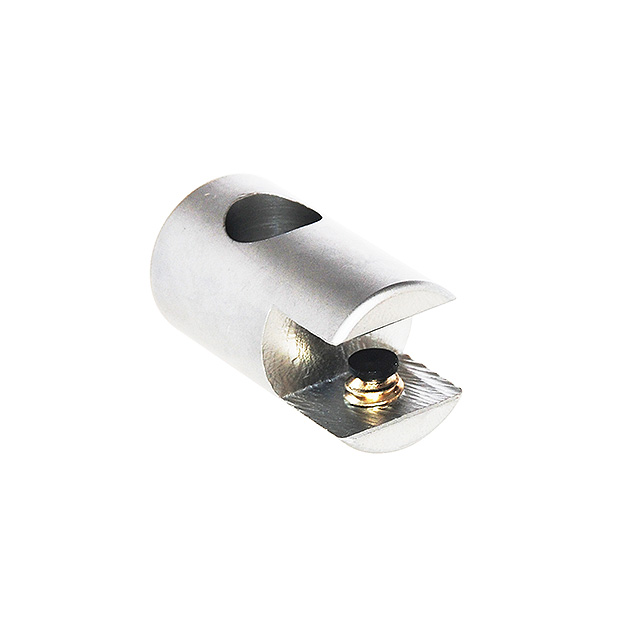

10mm(3/8") SS 18.5-34-10-10 18.5 (3/4") dia. x
34 (1-3/8") L (mm)		 Shelf support.
up to 10mm (3/8")

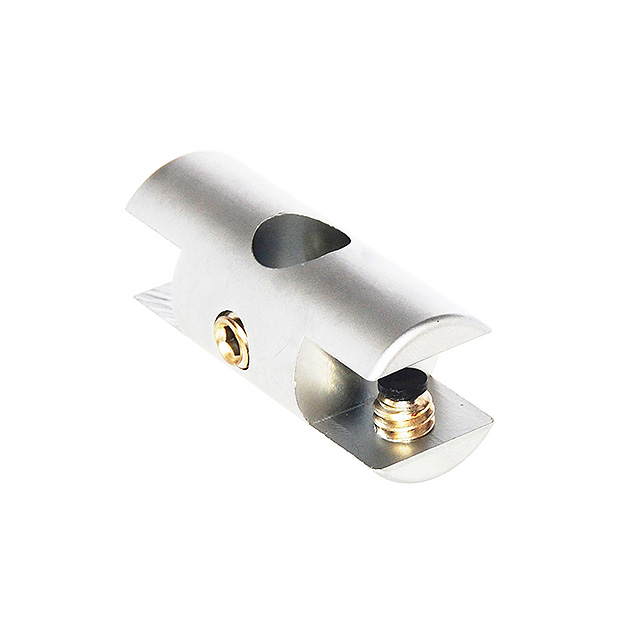

SS 18.5-45.2-10-10 18.5 (3/4") dia. x
45.2 (1-5/8") L (mm)		 Twin shelf support
up to 10mm (3/8")

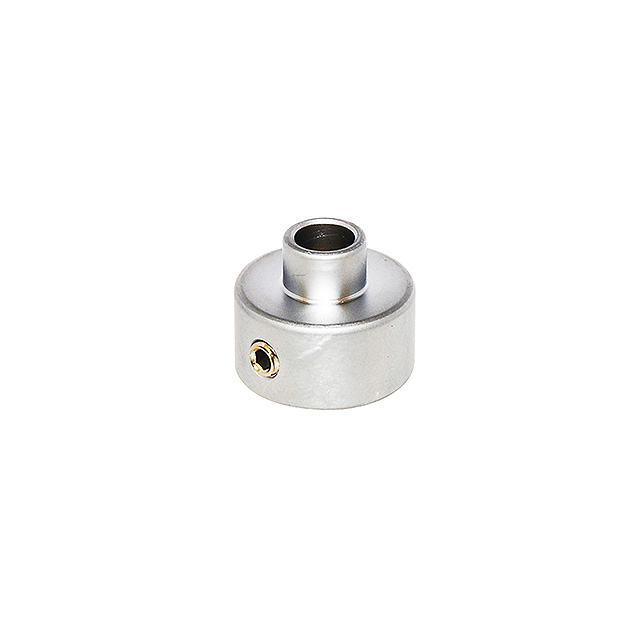

14mm (9/16") SS 24.5-14-10 24.5 (15/16") dia. (mm) Under-shelf support
shelf hole size 14mm (9/16")


Swivel Supports For Panels / Shelves
Support Preview Model No. Size Description Sketch

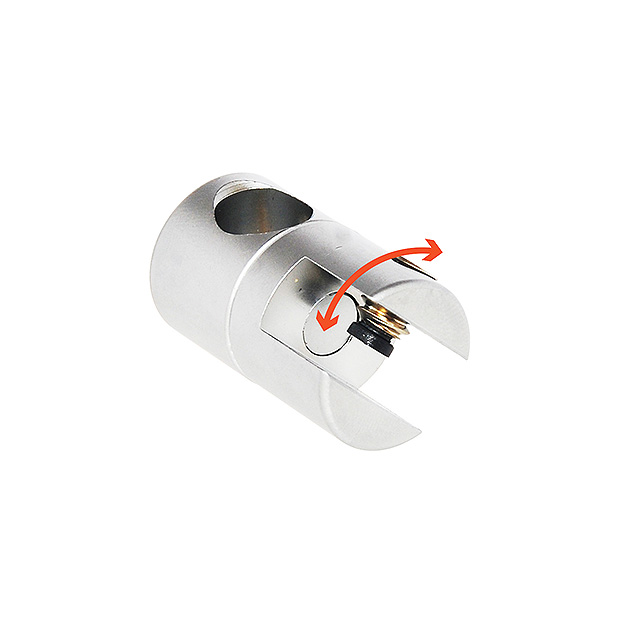

8mm(5/16") SPS 18.5-31-8-10 18.5 (3/4") dia. x
31 (1-1/8") L (mm)		 Swivel clamp for panel / shelf.
up to 8mm (5/16")

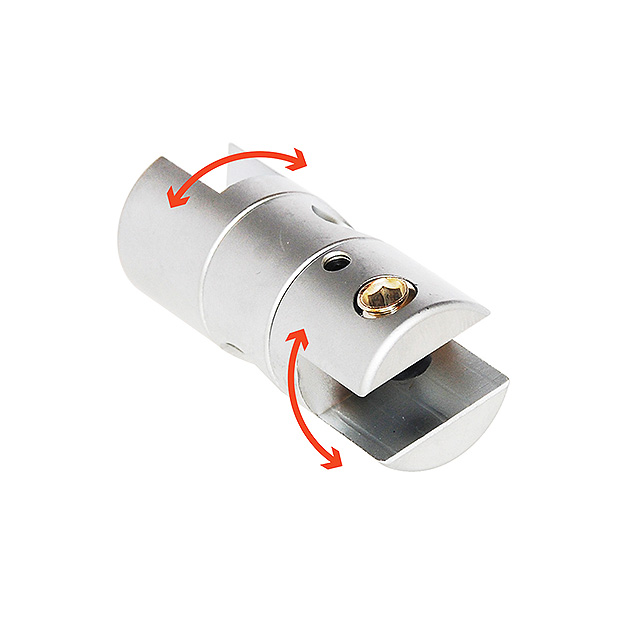

SPS 18.5-45-8-10 18.5 (3/4") dia. x
45 (1-5/8") L (mm)		 Twin swivel clamps for panels / shelves.
up to 8mm (5/16")


Wall Mounted Fittings For Rods
Support Preview Model No. Size Description Sketch

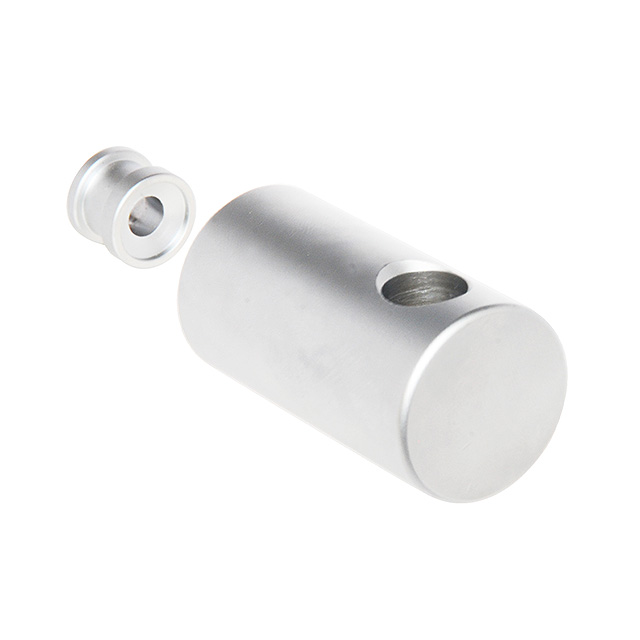

  WF 24.5-48-10 24.5 (15/16") dia. x
48 (1-3/8") L (mm)		 Wall mounted fitting for 10mm (3/8") rod

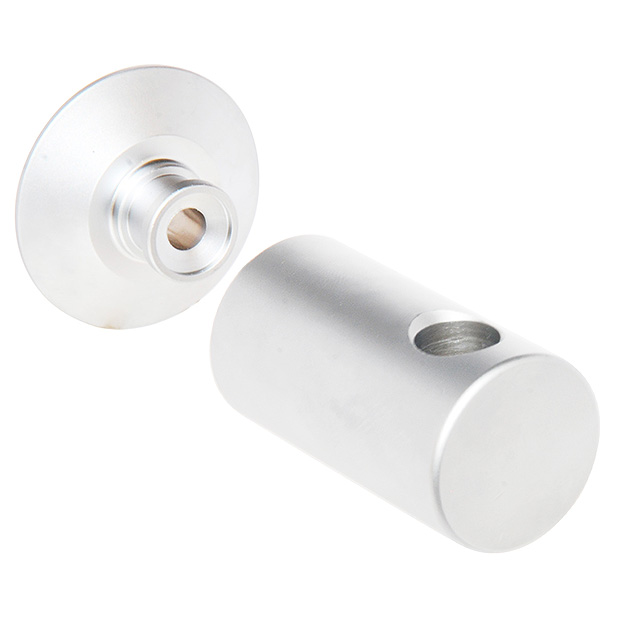

  WF 24.5-51-10P 24.5 (15/16") dia. x
51 (2") L (mm)		 Wall mounted fitting with plate for 10mm (3/8") rod


Supports For Panels With Holes
Support Preview Model No. Size Description Sketch

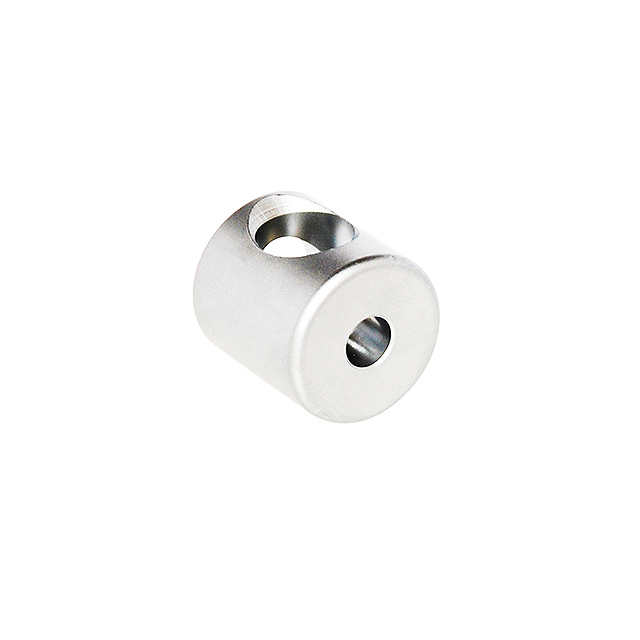

  PS 18.5-19-10 18.5 (3/4") dia. x
19 (3/4") L (mm)		 Frame support for 10mm (3/8") rod

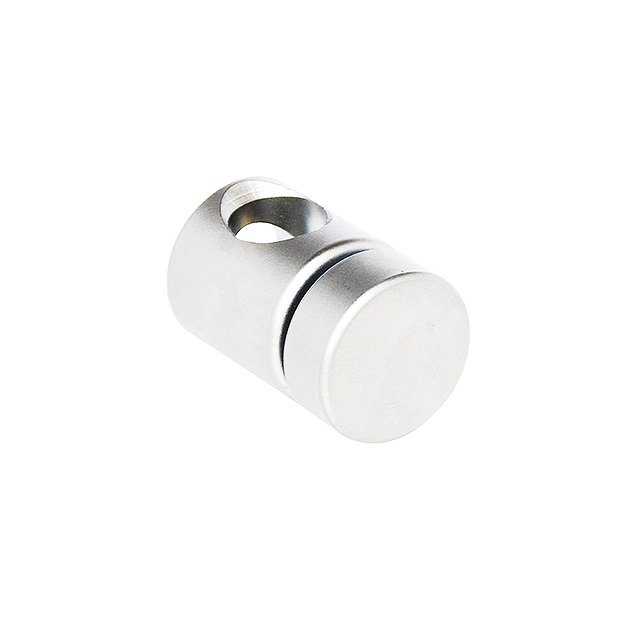

  PS 18.5-5-10-1 18.5 (3/4") dia. (mm) Support for panel with holes - single for 5mm (3/16") dia. hole fix.
  PS 18.5-5-10-2 18.5 (3/4") dia. (mm) Support for panels with holes- double for 5mm (3/16") dia. hole fix.

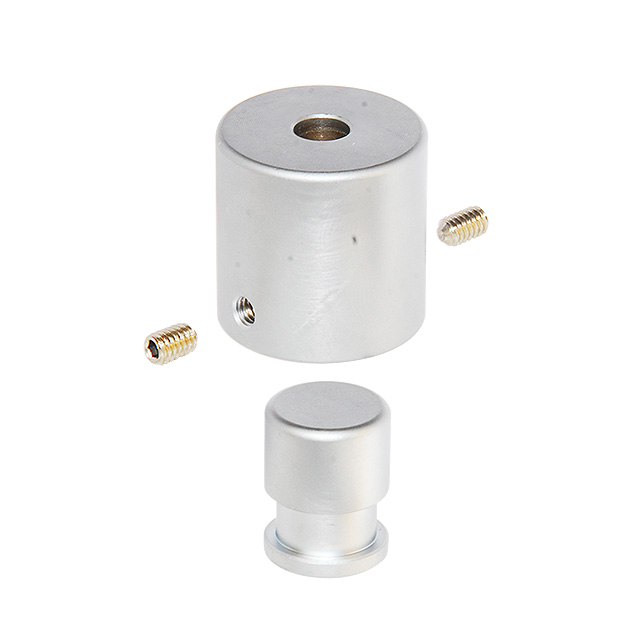

  F 24.5-24.5-10 24.5 (15/16") dia. x
24.5 (15/16") L (mm)		 Top fixing with thread ring


  • Material : Brass
  • Finish : Chrome / Satin Chrome
  • Material : Aluminum
  • Finish : Silver anodised / Brass anodised / Stainless anodised
